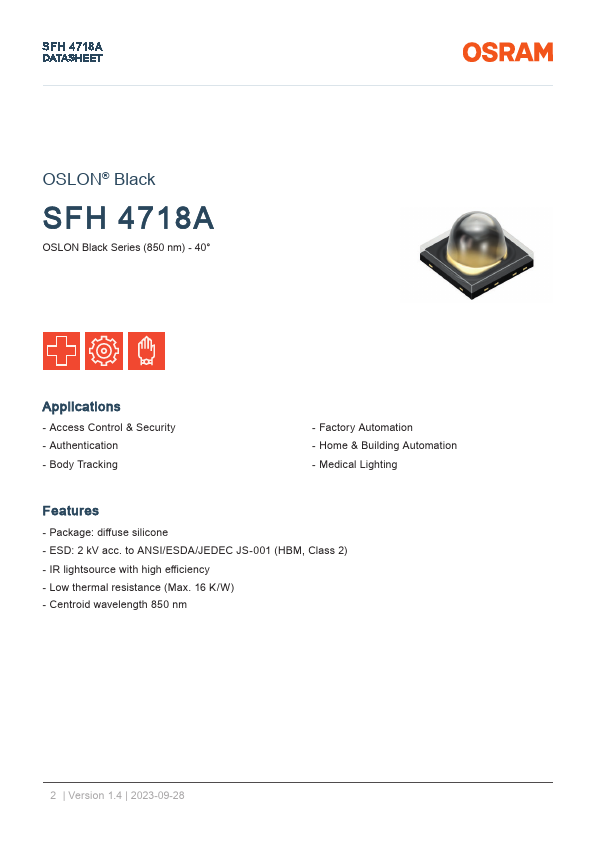

SFH4718A
Features
- Package: diffuse silicone
- ESD: 2 k V acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
- IR lightsource with high efficiency
- Low thermal resistance (Max. 16 K/W)
- Centroid wavelength 850 nm
2 | Version 1.4 | 2023-09-28
SFH 4718A DATASHEET

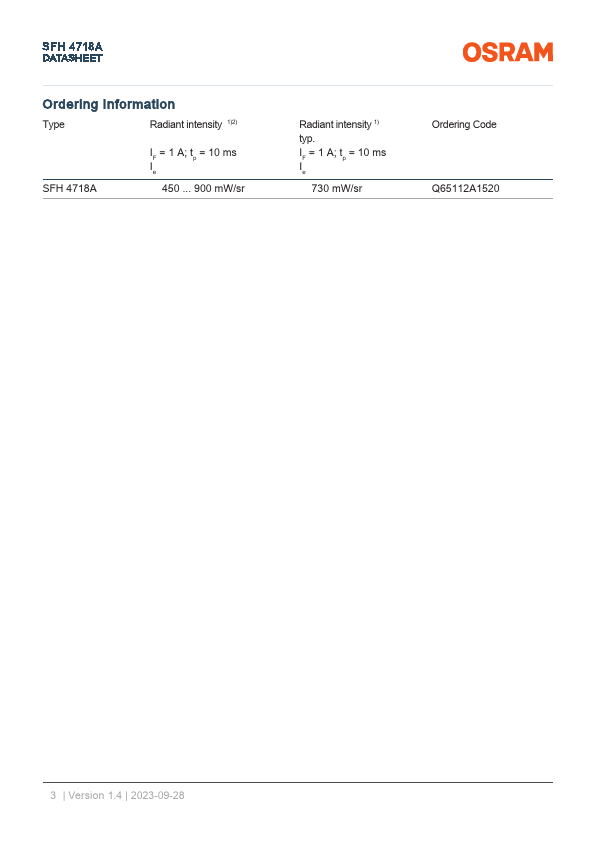

Ordering Information
Type
Radiant intensity 1)2)
SFH 4718A
IF = 1 A; tp = 10 ms Ie
450 ... 900 m W/sr
Radiant intensity 1) typ. IF = 1 A; tp = 10 ms Ie
730 m W/sr
Ordering Code Q65112A1520
3 | Version 1.4 | 2023-09-28
SFH 4718A DATASHEET

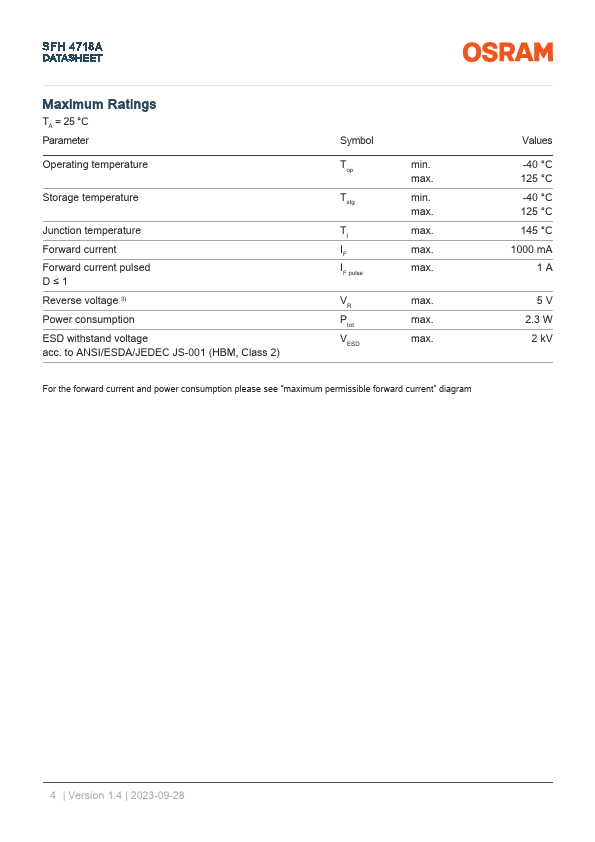

Maximum Ratings
TA = 25 °C Parameter
Operating temperature
Storage temperature
Junction temperature Forward current Forward current pulsed D ≤ 1 Reverse voltage 3) Power consumption ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
Symbol Top
Tstg
Tj IF IF pulse
VR Ptot VESD min. max. min. max. max. max. max. max. max. max.
For the forward current and power consumption please see “maximum permissible forward current” diagram
Values
-40 °C 125 °C -40 °C 125 °C...
