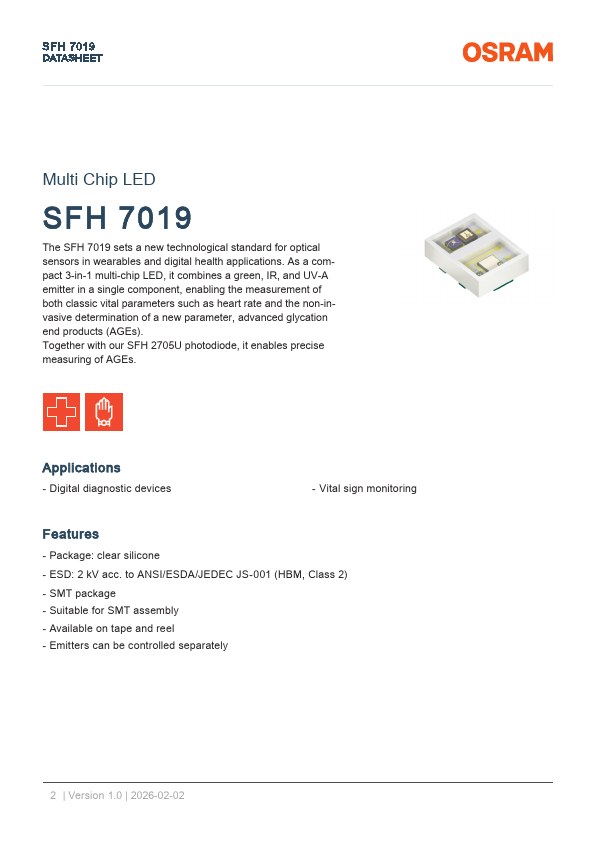

SFH7019
SFH7019 is Multi Chip LED manufactured by ams OSRAM.
Features
- Package: clear silicone
- ESD: 2 k V acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
- SMT package
- Suitable for SMT assembly
- Available on tape and reel
- Emitters can be controlled separately
2 | Version 1.0 | 2026-02-02
SFH 7019 DATASHEET

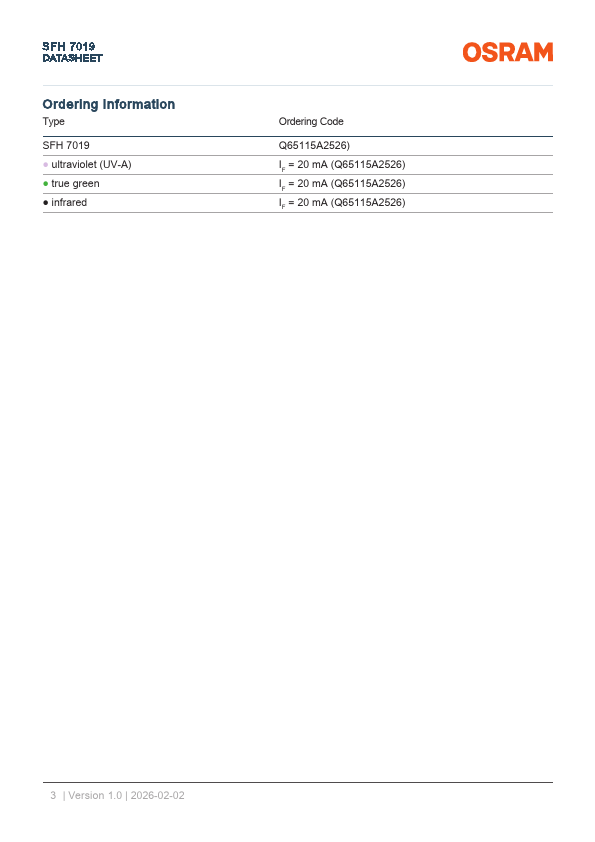

Ordering Information
Type SFH 7019
- ultraviolet (UV-A)
- true green
- infrared
Ordering Code
Q65115A2526) IF = 20 m A (Q65115A2526) IF = 20 m A (Q65115A2526) IF = 20 m A (Q65115A2526)
3 | Version 1.0 | 2026-02-02
SFH 7019 DATASHEET

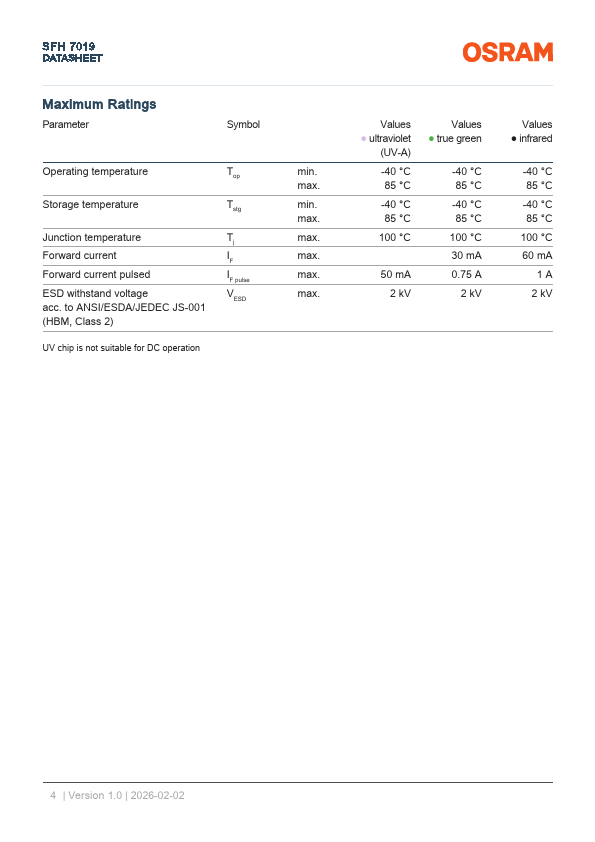

Maximum Ratings
Parameter
Symbol
Operating temperature
Top
Storage temperature
Tstg
Junction temperature
Forward current
Forward current pulsed
ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
Tj IF IF pulse VESD
UV chip is not suitable for DC operation min. max. min. max. max. max. max. max.
Values
- ultraviolet
(UV-A) -40 °C 85 °C -40 °C 85 °C 100 °C
50 m A 2 k...
