OV3660
Description

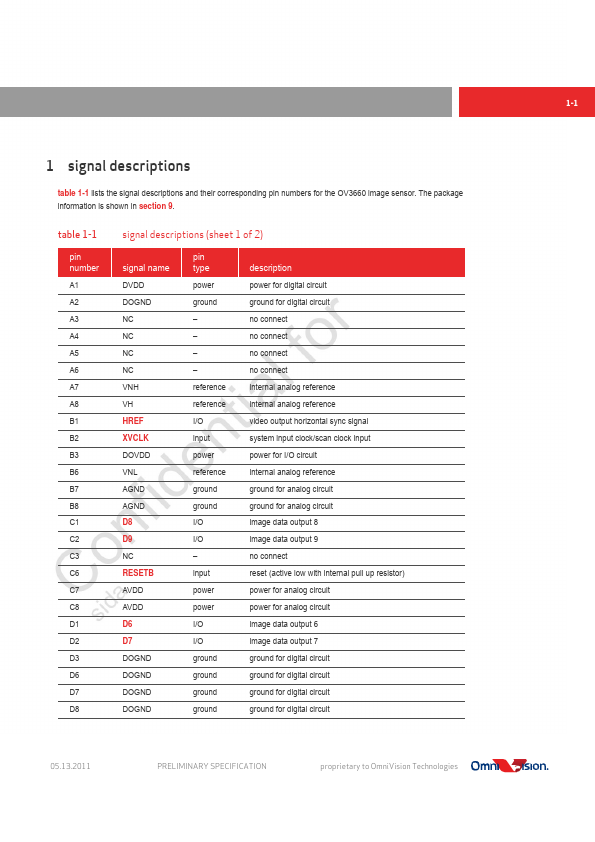

power for digital circuit ground for digital circuit no connect no connect no connect no connect internal analog reference internal analog reference video output horizontal sync signal system input clock/scan clock input power for I/O circuit internal analog reference ground for analog circuit ground for analog circuit image data output 8 image data output 9 no connect reset (active low with internal pull up resistor) power for analog circuit power for analog circuit image data output 6 image data output 7 ground for digital circuit ground for digital circuit ground for digital circuit ground for digital circuit 05.13.2011 PRELIMINARY SPECIFICATION proprietary to Om.

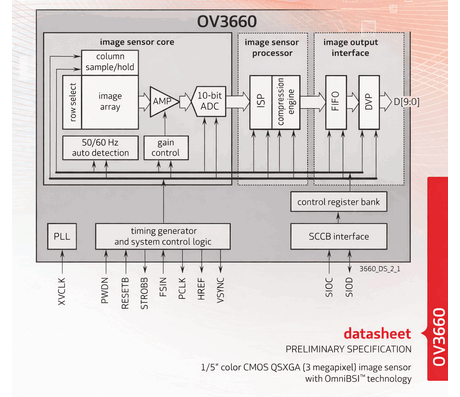

Representative OV3660 image (package may vary by manufacturer)
