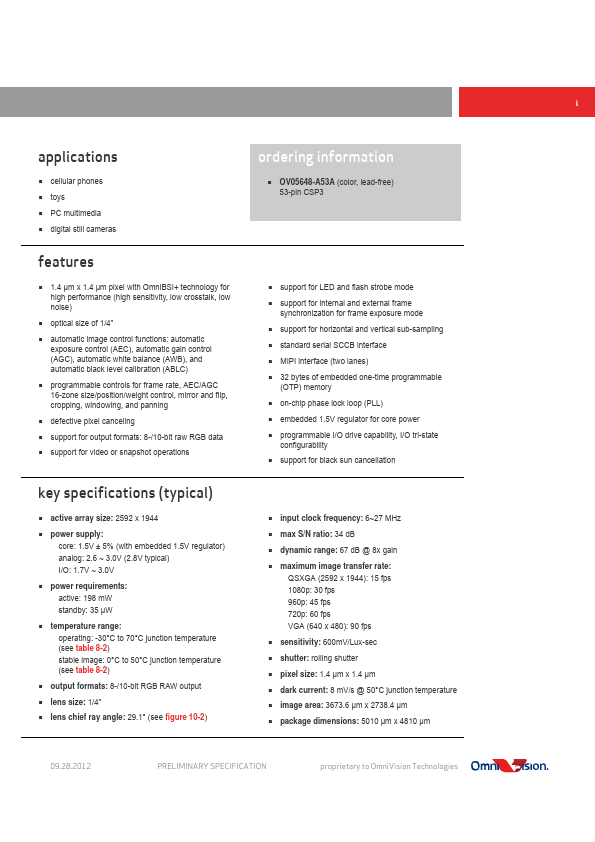

OV5648 datasheet PRELIMINARY SPECIFICATION 1/4" color CMOS QSXGA (5 megapixel) image sensor with OmniBSI+™ technology i 00applications cellular phones toys PC multimedia digital still cameras 00features 1.4 µm x 1.4 µm pixel with OmniBSI+ technology for high performance (high sensitivity, low crosstalk, low noise) optical size of 1/4" automatic image control functions: automatic exposure control (AEC), automatic gain control (AGC), automatic white balance (AWB), and automatic black level calibration (ABLC) programmable controls for frame rate, AEC/AGC 16-zone size/position/weight control, mirror and flip, cropping, windowing, and panning defective pixel canceling support for output formats: 8-/10-bit raw RGB data support for video or snapshot operations 00key specifications (typical) active array size: 2592 x 1944 power supply: core: 1.5V ± 5% (with embedded 1.5V regulator) analog: 2.6 ~ 3.0V (2.8V typical) I/O: 1.7V ~ 3.0V power requirements: active: 198 mW standby: 35 µW temperature...
