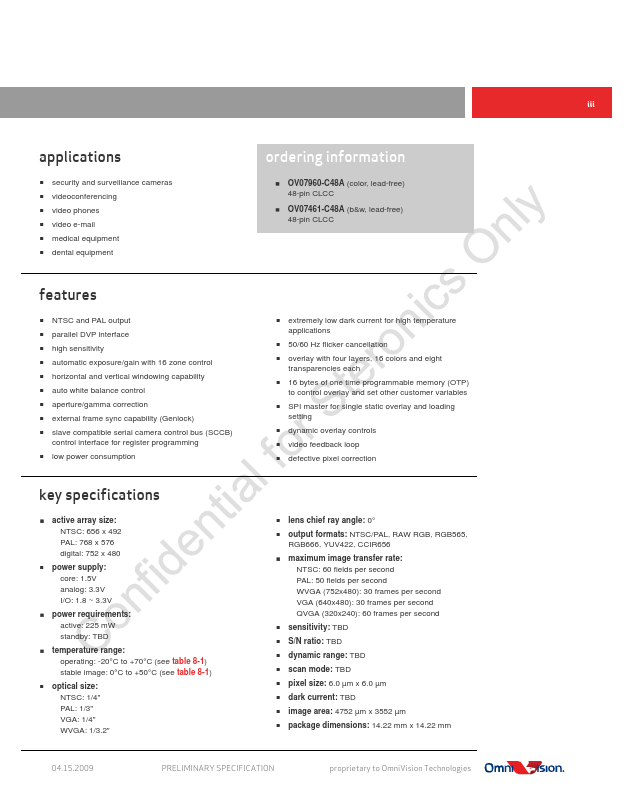

nly O teronics S onfidential for C datasheet PRELIMINARY SPECIFICATION CMOS digital / analog NTSC/PAL image sensor with OmniPixel3-HS™ technology OV7960/OV7461 iii 00applications ordering information security and surveillance cameras videoconferencing video phones video e-mail medical equipment dental equipment 00features NTSC and PAL output parallel DVP interface high sensitivity automatic exposure/gain with 16 zone control horizontal and vertical windowing capability auto white balance control aperture/gamma correction external frame sync capability (Genlock) slave compatible serial camera control bus (SCCB) control interface for register programming low power consumption l 00key specifications active array size: NTSC: 656 x 492 PAL: 768 x 576 digital: 752 x 480 entia power supply: core: 1.5V analog: 3.3V fid I/O: 1.8 ~ 3.3V n power requirements: o active: 225 mW C standby: TBD temperature range: operating: -20°C to +70°C (see table 8-1) stable image: 0°C to +50°C (see table 8-1) opt...
