OV7955 Datasheet PDF

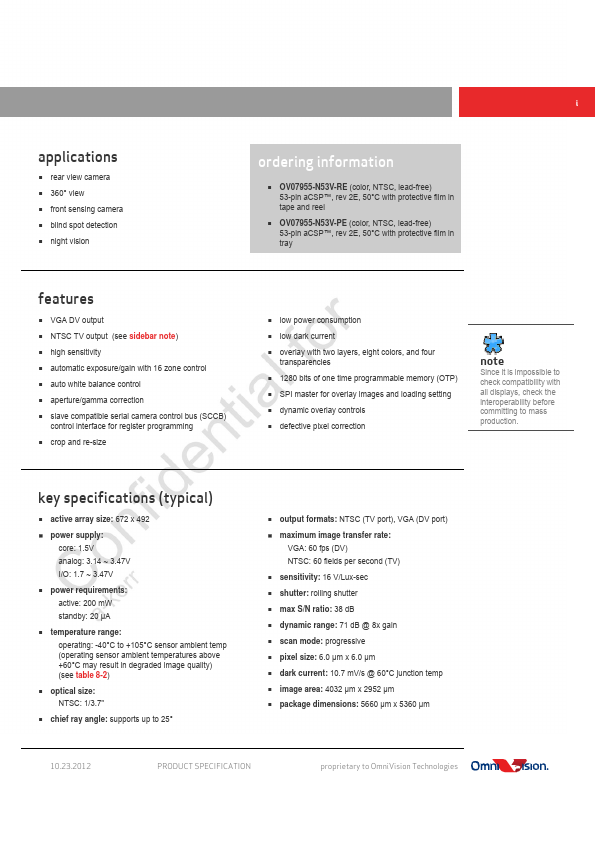

OV7955 (rev 2E) datasheet PRODUCT SPECIFICATION color CMOS analog NTSC image sensor with OmniPixel3-HS™ technology for automotive applications 00applications rear view camera 360° view front sensing camera blind spot detection night vision i oorrddeerriinngg iinnffoorrmmaattiioonn OV07955-N53V-RE (color, NTSC, lead-free) 53-pin aCSP™, rev 2E, 50°C with protective film in tape and reel OV07955-N53V-PE (color, NTSC, lead-free) 53-pin aCSP™, rev 2E, 50°C with protective film in tray 00features VGA DV output NTSC TV output (see sidebar note) high sensitivity automatic exposure/gain with 16 zone control auto white balance control aperture/gamma correction slave compatible serial camera control bus (SCCB) control interface for register programming crop and re-size low power consumption low dark current overlay with two layers, eight colors, and four transparencies 1280 bits of one time programmable memory (OTP) SPI master for overlay images and loading setting dynamic overlay controls defect...
