G3VM-201WR - MOS FET Relays

Download the G3VM-201WR datasheet PDF. This datasheet also covers the G3VM-31WR variant, as both devices belong to the same mos fet relays family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (G3VM-31WR-Omron.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
G3VM-21GR1 MOS FET Relays Omron Electronics
G3VM-2x G3VM Series MOS Fet Relaysdata Sheet Omron Corporation
G3VM-351G MOS FET Relays Omron Electronics
G3VM-351H MOS FET Relays Omron Electronics
G3VM-352C MOS FET Relays Omron Electronics

Other Datasheets by OMRON

Part Number Description
G3VM-201AY MOS FET Relays
G3VM-201AY1 MOS FET Relays
G3VM-201CR MOS FET Relays
G3VM-201DY MOS FET Relays
G3VM-201DY1 MOS FET Relays

Full PDF Text Transcription

Click to expand full text

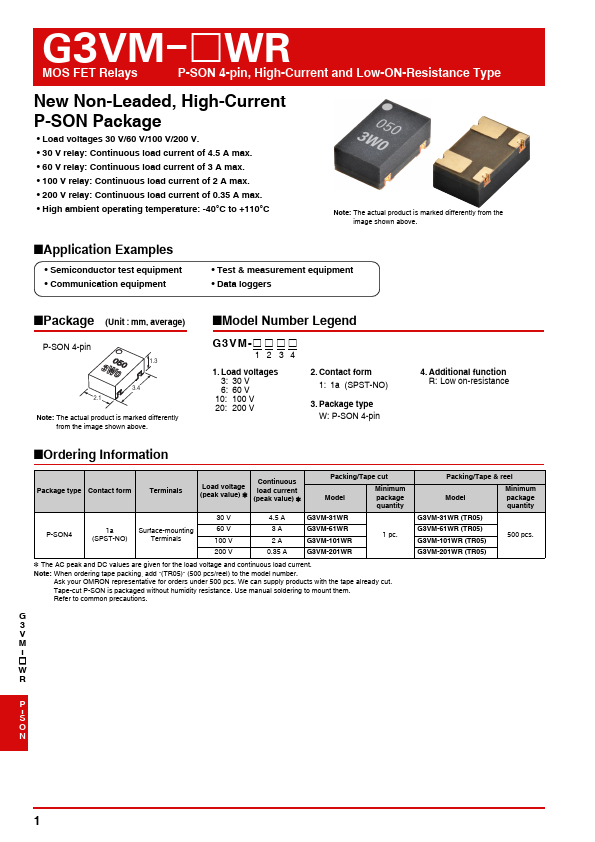

G3VM-…WR MOS FET Relays P-SON 4-pin, High-Current and Low-ON-Resistance Type New Non-Leaded, High-Current P-SON Package • Load voltages 30 V/60 V/100 V/200 V. • 30 V relay: Continuous load current of 4.5 A max. • 60 V relay: Continuous load current of 3 A max. • 100 V relay: Continuous load current of 2 A max. • 200 V relay: Continuous load current of 0.35 A max. • High ambient operating temperature: -40°C to +110°C Note: The actual product is marked differently from the image shown above. ■Application Examples • Semiconductor test equipment • Communication equipment • Test & measurement equipment • Data loggers ■Package (Unit : mm, average) P-SON 4-pin 3W0050 1.3 3.4 2.1 Note: The actual product is marked differently from the image shown above.
