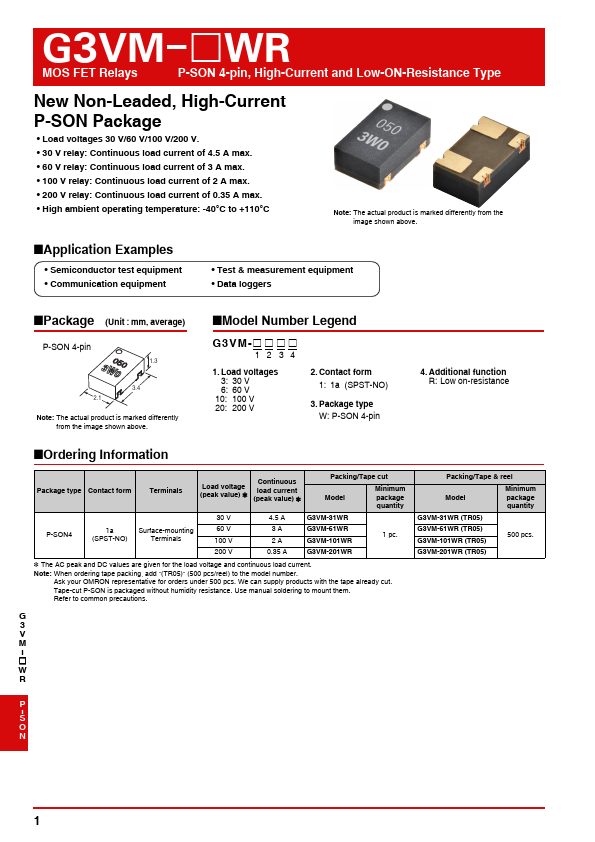

G3VM-
WR
MOS FET Relays
P-SON 4-pin, High-Current and Low-ON-Resistance Type
New Non-Leaded, High-Current P-SON Package
• Load voltages 30 V/60 V/100 V/200 V. • 30 V relay: Continuous load current of 4.5 A max. • 60 V relay: Continuous load current of 3 A max. • 100 V relay: Continuous load current of 2 A max. • 200 V relay: Continuous load current of 0.35 A max. • High ambient operating temperature: -40°C to +110°C
Note: The actual product is marked differently from the image shown above.
■Application Examples
• Semiconductor test equipment • Communication equipment
• Test & measurement equipment • Data loggers
■Package (Unit : mm, average)
P-SON 4-pin
3W0050
1.3
3.4 2.1
Note: The actual product is marked differently from the image shown above.
G3VM-31WR Datasheet
