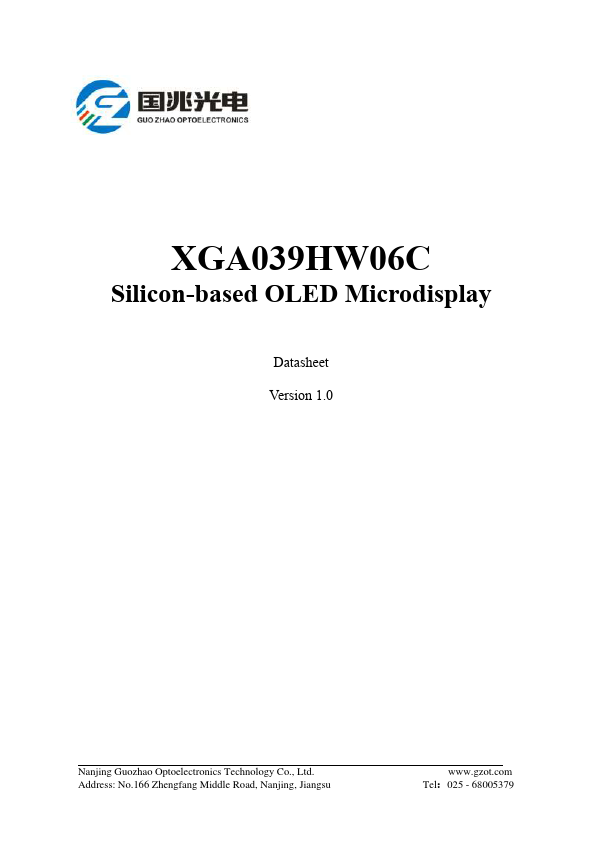

XGA039HW06C

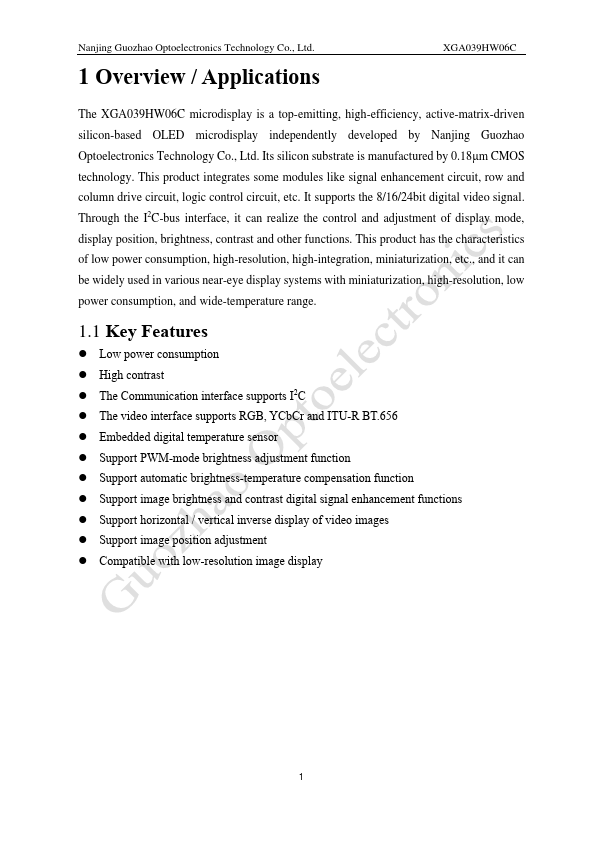

Overview
/ Applications
The XGA039HW06C microdisplay is a top-emitting, high-efficiency, active-matrix-driven silicon-based OLED microdisplay independently developed by Nanjing Guozhao Optoelectronics Technology Co., Ltd. Its silicon substrate is manufactured by 0.18μm CMOS technology. This product integrates some modules like signal enhancement circuit, row and column drive circuit, logic control circuit, etc. It supports the 8/16/24bit digital video signal. Through the I2C-bus interface, it can realize the control and adjustment of display mode, display position, brightness, contrast and other functions. This product has the characteristics of low power consumption, high-resolution, high-integration, miniaturization, etc., and it can be widely used in various near-eye display systems with miniaturization, high-resolution, low power consumption, and wide-temperature range.
1.1 Key Features
- Low power consumption
- High contrast
- The munication interface supports I2C
-...
