OP5920D - 10G SFP+ BIDI 20km Optical Transceiver

General Description

Opway’ OP5920D-3327 is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s.

Key Features

  • Supports 1.0 to 11.3Gb/s bit rates.
  • Hot-Pluggable SFP+ form factor.
  • Single LC for Bi-directional Transmission.
  • Built-in 1330 WDM Filter.
  • Uncooled 1330nm DFB Laser.
  • PIN Receiver.
  • Up to 20 km on 9/125μm SMF.
  • Built-in digital diagnostic functions.
  • Single +3.3V Power Supply.
  • Power dissipation.

📥 Download Datasheet

Datasheet Details

Part number OP5920D
Manufacturer Opway
File Size 344.06 KB
Description 10G SFP+ BIDI 20km Optical Transceiver
Datasheet download datasheet OP5920D Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
OP593 NPN Phototransistor TT
OP598 NPN Phototransistor TT
OP599 NPN Phototransistors TT
OP599A NPN Phototransistors TT
OP599B NPN Phototransistors TT

Other Datasheets by Opway

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

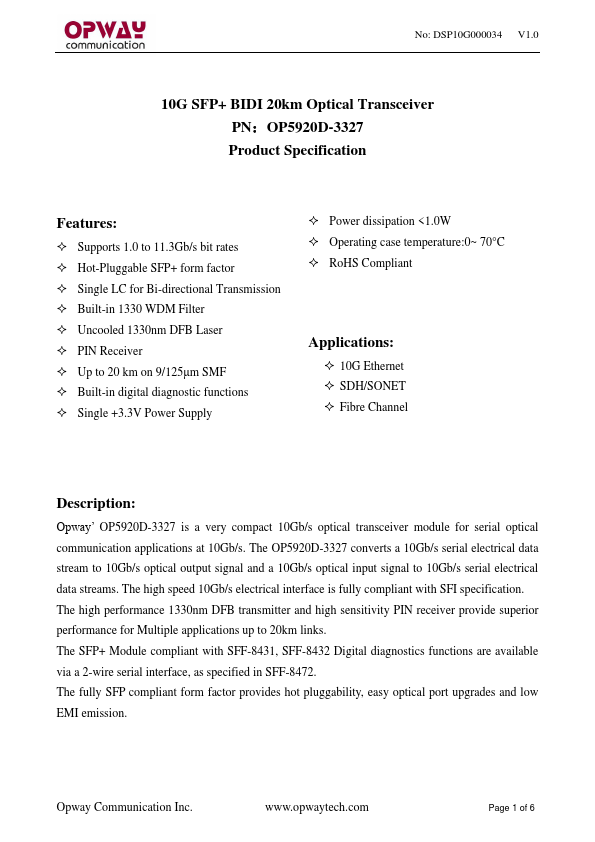

No: DSP10G000034 V1.0 10G SFP+ BIDI 20km Optical Transceiver PN：OP5920D-3327 Product Specification Features:  Supports 1.0 to 11.3Gb/s bit rates  Hot-Pluggable SFP+ form factor  Single LC for Bi-directional Transmission  Built-in 1330 WDM Filter  Uncooled 1330nm DFB Laser  PIN Receiver  Up to 20 km on 9/125μm SMF  Built-in digital diagnostic functions  Single +3.3V Power Supply  Power dissipation <1.0W  Operating case temperature:0~ 70°C  RoHS Compliant Applications:  10G Ethernet  SDH/SONET  Fibre Channel Description: Opway’ OP5920D-3327 is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s.
