OD1225-12HB02A Datasheet | Orion Fans

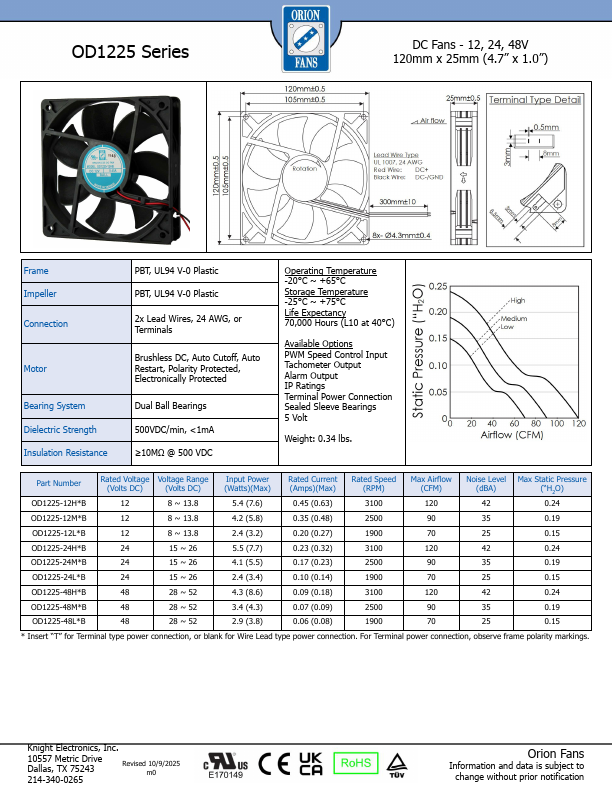

OD1225 Series DC Fans - 12, 24, 48V 120mm x 25mm (4.7” x 1.0”) Frame Impeller Connection Motor Bearing System Dielectric Strength Insulation Resistance PBT, UL94 V-0 Plastic PBT, UL94 V-0 Plastic 2x Lead Wires, 24 AWG, or Terminals Brushless DC, Auto Cutoff, Auto Restart, Polarity Protected, Electronically Protected Dual Ball Bearings 500VDC/min, <1m A ≥10MΩ @ 500 VDC Operating Temperature -20°C ~ +65°C Storage Temperature -25°C ~ +75°C Life Expectancy 70,000 Hours (L10 at 40°C) Available Options PWM Speed Control Input Tachometer Output Alarm Output IP Ratings Terminal Power Connection Sealed Sleeve Bearings 5 Volt Weight: 0.34 lbs. Part Number OD1225-12H- B Rated Voltage Voltage Range (Volts DC) (Volts DC) 8 ~ 13.8 Input Power (Watts)(Max) 5.4 (7.6) Rated Current (Amps)(Max) 0.45 (0.63) Rated Speed (RPM) Max Airflow (CFM) Noise Level (d BA) Max Static Pressure (“H2O) OD1225-12M-...
