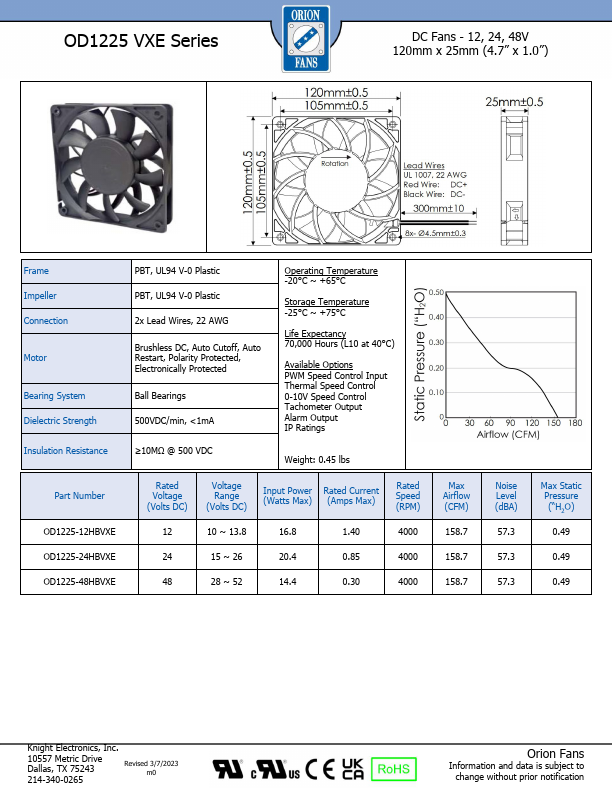

OD1225-12HBVXE10A
OD1225 VXE Series
DC Fans
- 12, 24, 48V 120mm x 25mm (4.7” x 1.0”)
Frame Impeller Connection
Motor
Bearing System Dielectric Strength Insulation Resistance
PBT, UL94 V-0 Plastic PBT, UL94 V-0 Plastic 2x Lead Wires, 22 AWG
Brushless DC, Auto Cutoff, Auto Restart, Polarity Protected, Electronically Protected
Ball Bearings 500VDC/min, <1m A
≥10MΩ @ 500 VDC
Operating Temperature -20°C ~ +65°C
Storage Temperature -25°C ~ +75°C
Life Expectancy 70,000 Hours (L10 at 40°C)
Available Options PWM Speed Control Input Thermal Speed Control 0-10V Speed Control Tachometer Output Alarm Output IP Ratings
Weight: 0.45 lbs
Part Number
Rated Voltage (Volts DC)
Voltage Range (Volts DC)
Input Power Rated Current (Watts Max) (Amps Max)
Rated Speed (RPM)
OD1225-12HBVXE
10 ~ 13.8
OD1225-24HBVXE
15 ~ 26
OD1225-48HBVXE
28 ~ 52
Max Airflow...
