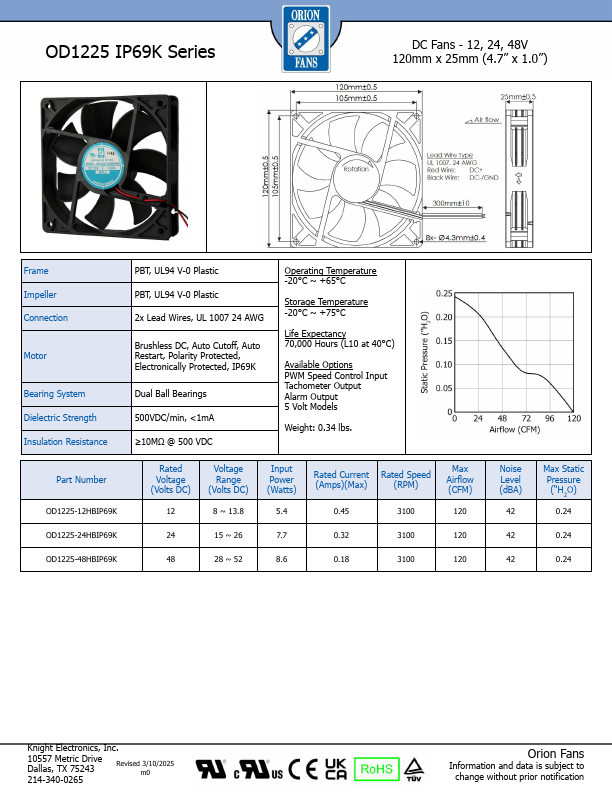

OD1225
OD1225 IP69K Series
DC Fans
- 12, 24, 48V 120mm x 25mm (4.7” x 1.0”)
Frame Impeller Connection
Motor
Bearing System Dielectric Strength Insulation Resistance
PBT, UL94 V-0 Plastic PBT, UL94 V-0 Plastic 2x Lead Wires, UL 1007 24 AWG
Brushless DC, Auto Cutoff, Auto Restart, Polarity Protected, Electronically Protected, IP69K
Dual Ball Bearings 500VDC/min, <1m A ≥10MΩ @ 500 VDC
Operating Temperature -20°C ~ +65°C
Storage Temperature -20°C ~ +75°C
Life Expectancy 70,000 Hours (L10 at 40°C)
Available Options PWM Speed Control Input Tachometer Output Alarm Output 5 Volt Models
Weight: 0.34 lbs.
Part Number OD1225-12HBIP69K OD1225-24HBIP69K OD1225-48HBIP69K
Rated Voltage (Volts DC)
Voltage Range (Volts DC)
8 ~ 13.8
Input Power (Watts)
Rated Current Rated Speed
(Amps)(Max)
(RPM)
Max Airflow (CFM)
15 ~ 26
28 ~...
