OD1238-12HBVXC datasheet by Orion Fans.
| Part number | OD1238-12HBVXC |
|---|---|
| Datasheet | OD1238-12HBVXC-OrionFans.pdf |
| File Size | 1.25 MB |
| Manufacturer | Orion Fans |
| Description | High Performance DC Fans |
|
|

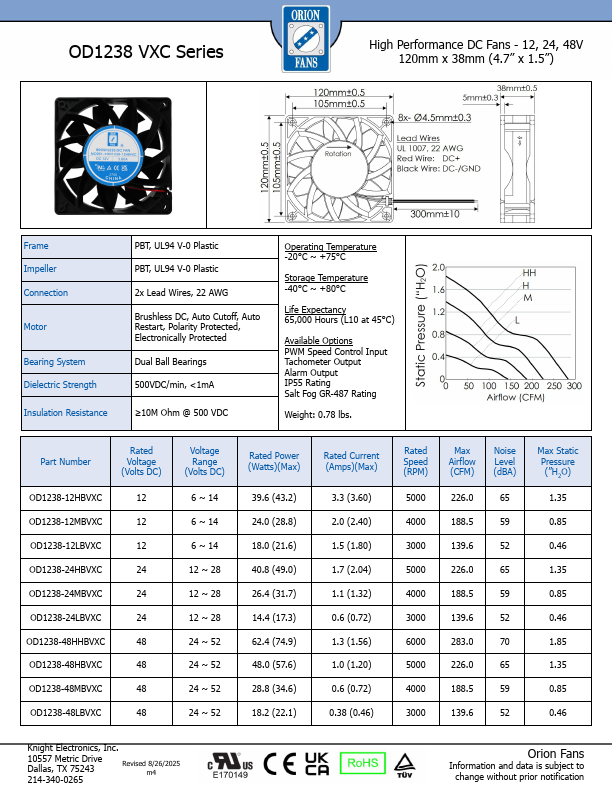

OD1238 VXC Series High Performance DC Fans - 12, 24, 48V 120mm x 38mm (4.7” x 1.5”) Frame Impeller Connection Motor Bearing System Dielectric Strength Insulation Resistance PBT, UL94 V-0 Plastic PBT, UL94 V-0 Plastic 2x Lead Wires, 22 AWG Brushless DC, Auto.
View OD1238-12HBXJ10A datasheet index
| Brand Logo | Part Number | Description | Other Manufacturers |
|---|---|---|---|
| Knight Electronics | OD1238-12HBXJ10A | DC Fan | Knight Electronics |
View all Orion Fans datasheets
| Part Number | Description |
|---|---|

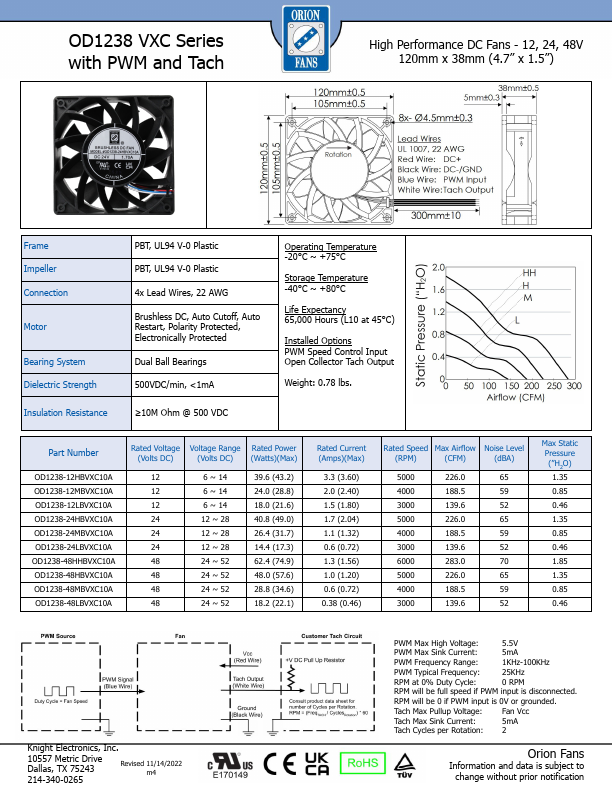

| OD1238-12HBVXC10A | High Performance DC Fans |
| OD1238-12HB01 | DC Fans |
| OD1238-12HB01A | DC Fans |
| OD1238-12HB02A | DC Fans |
| OD1238-12HB10A | DC Fans |
| OD1238-12HBXC | DC Fans |
| OD1238-12HBXC01A | DC Fans |
| OD1238-12HBXC10A | DC Fans |
| OD1238-12HBXJ01A | DC Fans |
| OD1238-12HBXJ10A | DC Fans |
