OD1238-12HBXC datasheet by Orion Fans.
| Part number | OD1238-12HBXC |
|---|---|
| Datasheet | OD1238-12HBXC-OrionFans.pdf |
| File Size | 620.69 KB |
| Manufacturer | Orion Fans |
| Description | DC Fans |
|
|

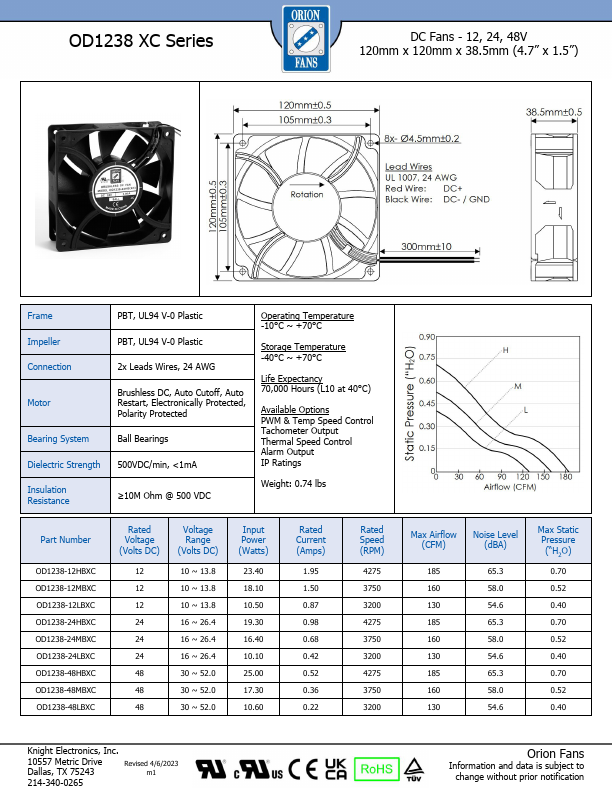

OD1238 XC Series DC Fans - 12, 24, 48V 120mm x 120mm x 38.5mm (4.7” x 1.5”) Frame Impeller Connection Motor Bearing System Dielectric Strength Insulation Resistance PBT, UL94 V-0 Plastic PBT, UL94 V-0 Plastic 2x Leads Wires, 24 AWG Brushless DC, Auto Cutoff,.
