OD1238-12LBXC10A Datasheet | Orion Fans

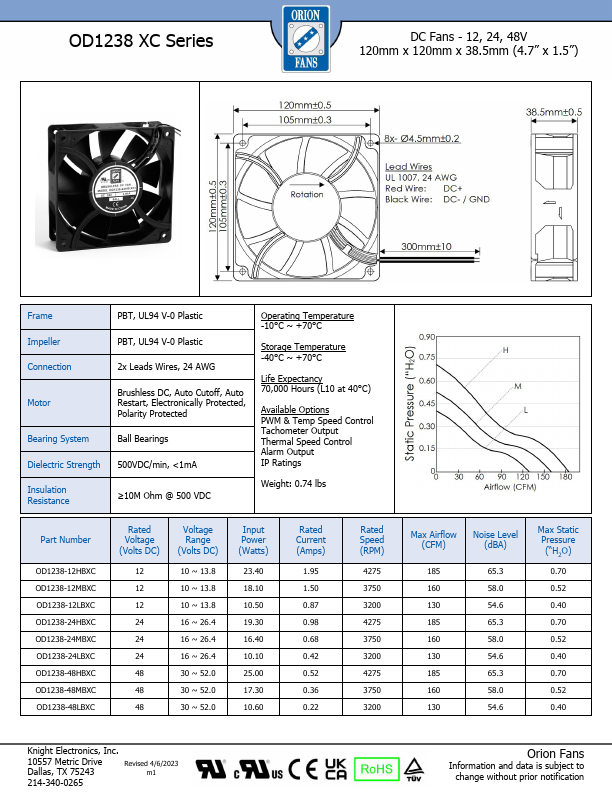

OD1238 XC Series DC Fans - 12, 24, 48V 120mm x 120mm x 38.5mm (4.7” x 1.5”) Frame Impeller Connection Motor Bearing System Dielectric Strength Insulation Resistance PBT, UL94 V-0 Plastic PBT, UL94 V-0 Plastic 2x Leads Wires, 24 AWG Brushless DC, Auto Cutoff, Auto Restart, Electronically Protected, Polarity Protected Ball Bearings 500VDC/min, <1m A ≥10M Ohm @ 500 VDC Operating Temperature -10°C ~ +70°C Storage Temperature -40°C ~ +70°C Life Expectancy 70,000 Hours (L10 at 40°C) Available Options PWM & Temp Speed Control Tachometer Output Thermal Speed Control Alarm Output IP Ratings Weight: 0.74 lbs Part Number OD1238-12HBXC OD1238-12MBXC OD1238-12LBXC OD1238-24HBXC OD1238-24MBXC OD1238-24LBXC OD1238-48HBXC OD1238-48MBXC OD1238-48LBXC Rated Voltage (Volts DC) 12 12 12 24 24 24 48 48 48 Voltage Range (Volts DC) 10 ~ 13.8 10 ~ 13.8 10 ~ 13.8 16 ~ 26.4 16 ~ 26.4 16 ~ 26.4 30 ~ 52.0 30 ~ 52.0 30 ~ 52.0 Input Power (Watts) 23.40 18.10 10.50 19.30 16.40 10.10 25.00 17.30 10.60 Rated Current (Amps) 1.95 1.50 0.87 0.98 0.68 0.42 0.52 0.36 0.22 Rated Speed (RPM) 4275 3750 3200 4275 3750 3200 4275 3750 3200 Max Airflow Noise Level (CFM) (d BA) Max Static Pressure (“H2O) 0.70 0.52 0.40 0.70 0.52 0.40 0.70 0.52...
