OD1238-24HBVXC datasheet by Orion Fans.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | OD1238-24HBVXC |
|---|---|
| Datasheet | OD1238-24HBVXC OD1238-12HBVXC Datasheet (PDF) |
| File Size | 1.25 MB |
| Manufacturer | Orion Fans |
| Description | High Performance DC Fans |
|
|

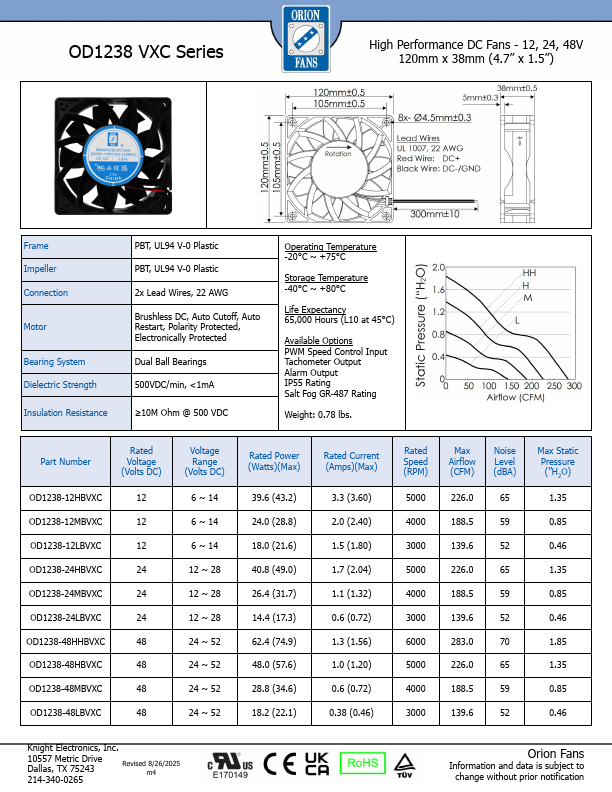

OD1238 VXC Series High Performance DC Fans - 12, 24, 48V 120mm x 38mm (4.7” x 1.5”) Frame Impeller Connection Motor Bearing System Dielectric Strength Insulation Resistance PBT, UL94 V-0 Plastic PBT, UL94 V-0 Plastic 2x Lead Wires, 22 AWG Brushless DC, Auto.
View all Orion Fans datasheets
| Part Number | Description |
|---|---|
| OD1238-24HBVXC10A | High Performance DC Fans |
| OD1238-24HB01 | DC Fans |
| OD1238-24HB01A | DC Fans |
| OD1238-24HB02A | DC Fans |
| OD1238-24HB10A | DC Fans |
| OD1238-24HBXC | DC Fans |
| OD1238-24HBXC01A | DC Fans |
| OD1238-24HBXC10A | DC Fans |
| OD1238-24HBXJ01A | DC Fans |
| OD1238-24HBXJ10A | DC Fans |
