OD1238-24HHB01 Datasheet | Orion Fans

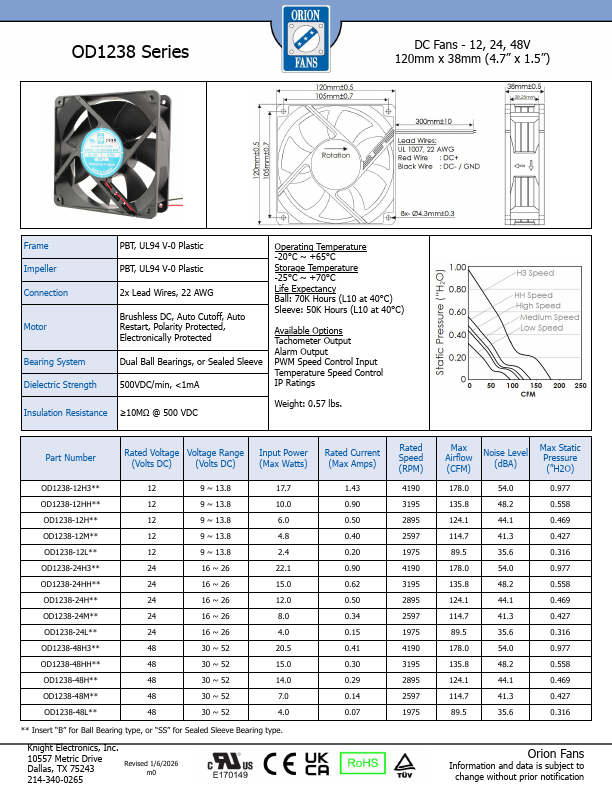

OD1238 Series DC Fans - 12, 24, 48V 120mm x 38mm (4.7” x 1.5”) Frame Impeller Connection Motor Bearing System Dielectric Strength PBT, UL94 V-0 Plastic PBT, UL94 V-0 Plastic 2x Lead Wires, 22 AWG Brushless DC, Auto Cutoff, Auto Restart, Polarity Protected, Electronically Protected Dual Ball Bearings, or Sealed Sleeve 500VDC/min, <1m A Operating Temperature -20°C ~ +65°C Storage Temperature -25°C ~ +70°C Life Expectancy Ball: 70K Hours (L10 at 40°C) Sleeve: 50K Hours (L10 at 40°C) Available Options Tachometer Output Alarm Output PWM Speed Control Input Temperature Speed Control IP Ratings Insulation Resistance ≥10MΩ @ 500 VDC Weight: 0.57 lbs. Part Number Rated Voltage Voltage Range Input Power (Volts DC) (Volts DC) (Max Watts) OD1238-12H3- - OD1238-12HH- - OD1238-12H- - OD1238-12M- - OD1238-12L- - OD1238-24H3- - OD1238-24HH- - OD1238-24H- -...
