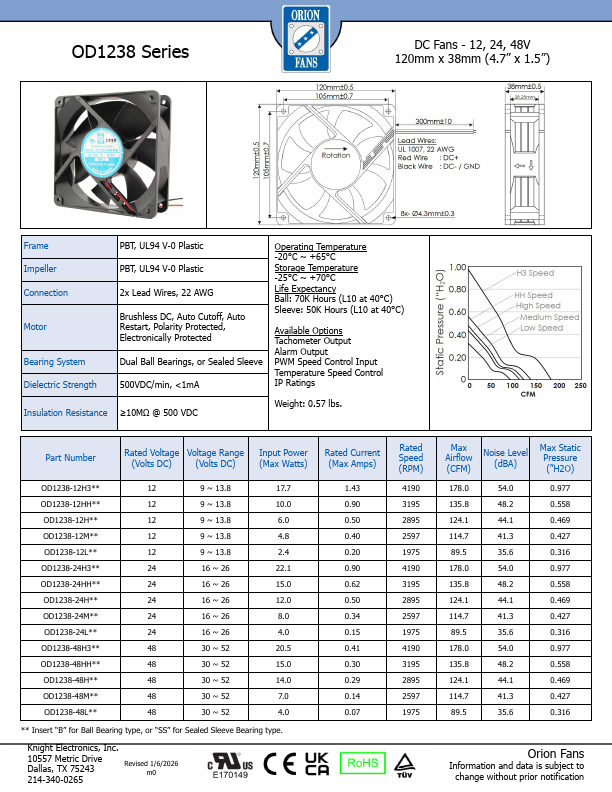

OD1238-24LB02A datasheet by Orion Fans.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | OD1238-24LB02A |
|---|---|
| Datasheet | OD1238-24LB02A OD1238-12H3B10A Datasheet (PDF) |
| File Size | 802.29 KB |
| Manufacturer | Orion Fans |
| Description | DC Fans |
|
|
70K Hours (L10 at 40°C) Sleeve: 50K Hours (L10 at 40°C) Available Options Tachometer Output Alarm Output PWM Speed Control Input Temperature Speed Control IP Ratings Insulation Resistance ≥10MΩ @ 500 VDC Weight: Rated Voltage Voltage Range Input Power Rated Current Rated Speed Max Airflow (Volts DC) (Volts DC) (Max.
View all Orion Fans datasheets
| Part Number | Description |
|---|---|
| OD1238-24LB01 | DC Fans |
| OD1238-24LB01A | DC Fans |
| OD1238-24LB10A | DC Fans |
| OD1238-24LBVXC | High Performance DC Fans |
| OD1238-24LBVXC10A | High Performance DC Fans |
| OD1238-24LBXC | DC Fans |
| OD1238-24LBXC01A | DC Fans |
| OD1238-24LBXC10A | DC Fans |
| OD1238-24H3B01 | DC Fans |
| OD1238-24H3B01A | DC Fans |
