OD1238-24MBVXC datasheet by Orion Fans.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | OD1238-24MBVXC |
|---|---|
| Datasheet | OD1238-24MBVXC OD1238-12HBVXC Datasheet (PDF) |
| File Size | 1.25 MB |
| Manufacturer | Orion Fans |
| Description | High Performance DC Fans |
|
|

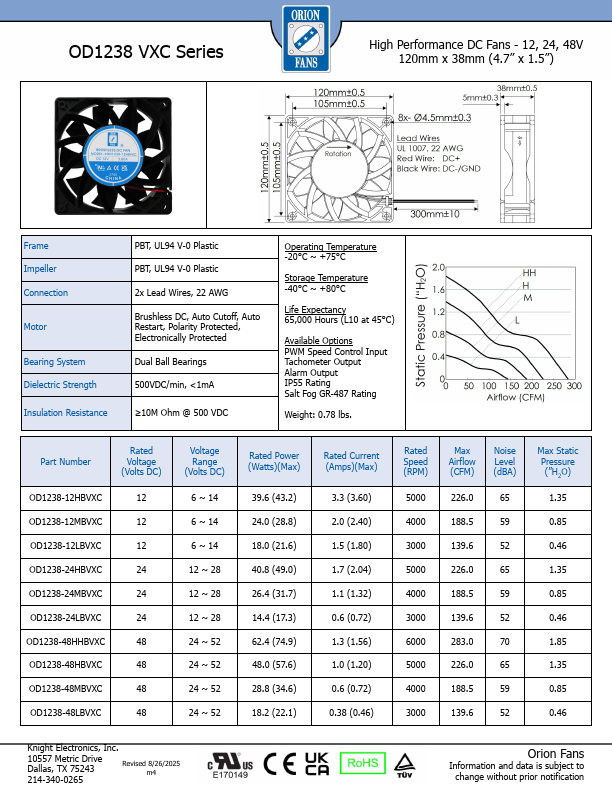

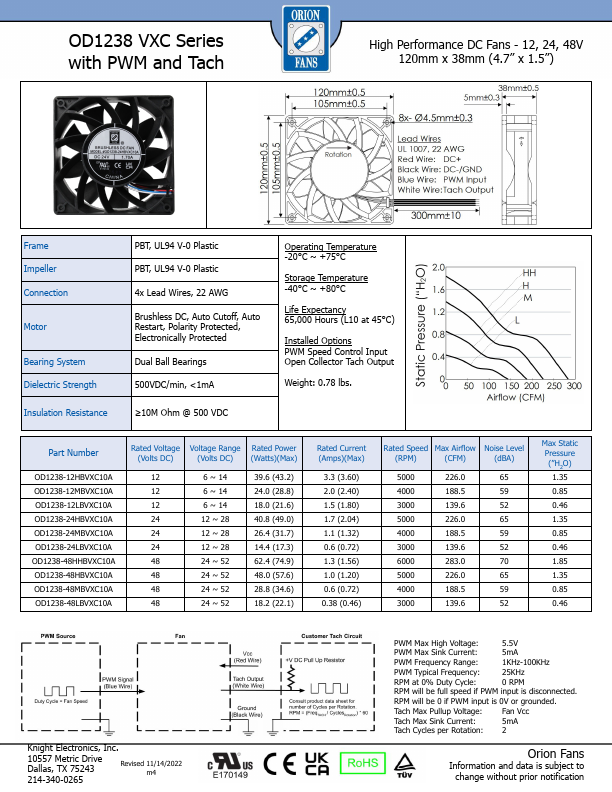

OD1238 VXC Series High Performance DC Fans - 12, 24, 48V 120mm x 38mm (4.7” x 1.5”) Frame Impeller Connection Motor Bearing System Dielectric Strength Insulation Resistance PBT, UL94 V-0 Plastic PBT, UL94 V-0 Plastic 2x Lead Wires, 22 AWG Brushless DC, Auto.
