OD1238-24MBXJ10A
OD1238-24MBXJ10A is DC Fans manufactured by Orion Fans.
- Part of the OD1238-12HBXJ01A comparator family.
- Part of the OD1238-12HBXJ01A comparator family.

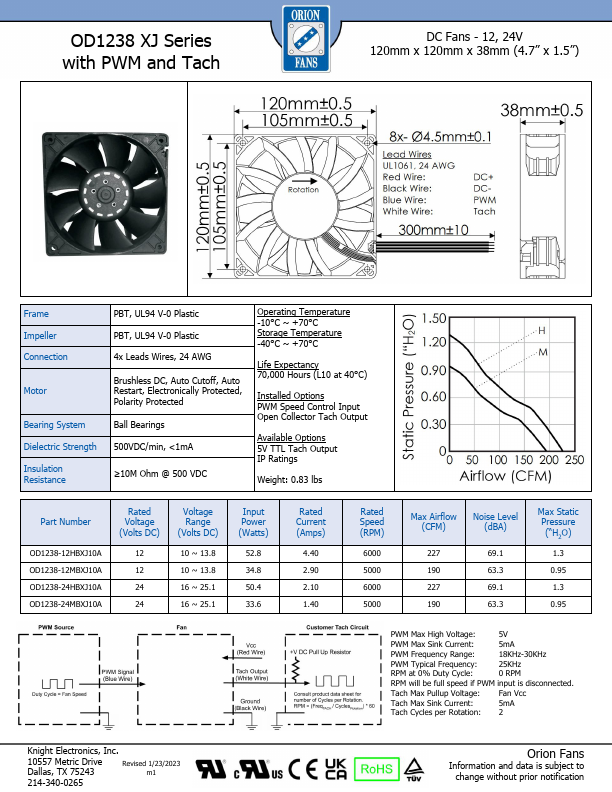

OD1238 XJ Series with Tach
DC Fans
- 12, 24V 120mm x 120mm x 38mm (4.7” x 1.5”)
Frame Impeller Connection
Motor
Bearing System Dielectric Strength Insulation Resistance
PBT, UL94 V-0 Plastic PBT, UL94 V-0 Plastic 3x Leads Wires, 24 AWG
Brushless DC, Auto Cutoff, Auto Restart, Electronically Protected, Polarity Protected
Ball Bearings 500VDC/min, <1m A
≥10M Ohm @ 500 VDC
Operating Temperature -10°C ~ +70°C
Storage Temperature -40°C ~ +70°C
Life Expectancy 70,000 Hours (L10 at 40°C)
Installed Options Open Collector Tach Output
Available Options 5V TTL Tach Output IP Ratings
Weight: 0.83 lbs
Part Number
OD1238-12HBXJ01A OD1238-12MBXJ01A OD1238-24HBXJ01A OD1238-24MBXJ01A
Rated Voltage (Volts DC)
Voltage Range (Volts DC)
10 ~ 13.8
10 ~ 13.8
16 ~ 25.1
16 ~ 25.1
Input Power (Watts)
Rated Current (Amps)
Rated Speed (RPM)
Max Airflow Noise Level
(CFM)
(d...
