OD1238-48HBXC datasheet by Orion Fans.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | OD1238-48HBXC |
|---|---|
| Datasheet | OD1238-48HBXC OD1238-12HBXC Datasheet (PDF) |
| File Size | 620.69 KB |
| Manufacturer | Orion Fans |
| Description | DC Fans |
|
|

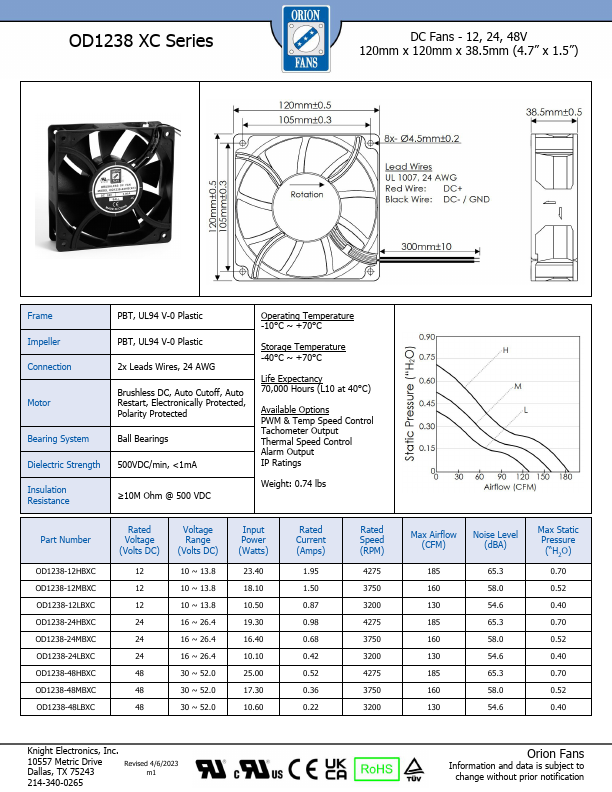

OD1238 XC Series DC Fans - 12, 24, 48V 120mm x 120mm x 38.5mm (4.7” x 1.5”) Frame Impeller Connection Motor Bearing System Dielectric Strength Insulation Resistance PBT, UL94 V-0 Plastic PBT, UL94 V-0 Plastic 2x Leads Wires, 24 AWG Brushless DC, Auto Cutoff,.
View all Orion Fans datasheets
| Part Number | Description |
|---|---|
| OD1238-48HBXC01A | DC Fans |
| OD1238-48HBXC10A | DC Fans |
| OD1238-48HB01 | DC Fans |
| OD1238-48HB01A | DC Fans |
| OD1238-48HB02A | DC Fans |
| OD1238-48HB10A | DC Fans |
| OD1238-48HBVXC | High Performance DC Fans |
| OD1238-48HBVXC10A | High Performance DC Fans |
| OD1238-48H3B01 | DC Fans |
| OD1238-48H3B01A | DC Fans |
