OD1238-48LBVXC Datasheet | Orion Fans

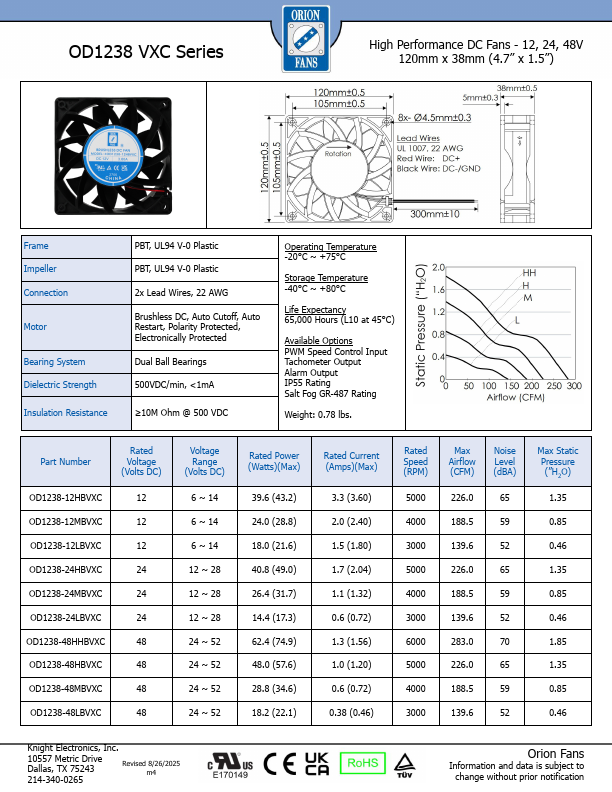

OD1238 VXC Series High Performance DC Fans - 12, 24, 48V 120mm x 38mm (4.7” x 1.5”) Frame Impeller Connection Motor Bearing System Dielectric Strength Insulation Resistance PBT, UL94 V-0 Plastic PBT, UL94 V-0 Plastic 2x Lead Wires, 22 AWG Brushless DC, Auto Cutoff, Auto Restart, Polarity Protected, Electronically Protected Dual Ball Bearings 500VDC/min, <1m A ≥10M Ohm @ 500 VDC Operating Temperature -20°C ~ +75°C Storage Temperature -40°C ~ +80°C Life Expectancy 65,000 Hours (L10 at 45°C) Available Options PWM Speed Control Input Tachometer Output Alarm Output IP55 Rating Salt Fog GR-487 Rating Weight: 0.78 lbs. Part Number Rated Voltage (Volts DC) OD1238-12HBVXC OD1238-12MBVXC OD1238-12LBVXC OD1238-24HBVXC OD1238-24MBVXC OD1238-24LBVXC OD1238-48HHBVXC OD1238-48HBVXC OD1238-48MBVXC Voltage Range (Volts DC) 6 ~ 14 6 ~ 14 6 ~ 14 12 ~ 28 12 ~ 28 12 ~ 28 24 ~ 52 24 ~ 52 24 ~ 52 24 ~ 52 Rated Power (Watts)(Max) 39.6 (43.2) 24.0 (28.8) 18.0 (21.6) 40.8 (49.0) 26.4 (31.7) 14.4 (17.3) 62.4 (74.9) 48.0 (57.6) 28.8 (34.6) 18.2...
