OD127-48HB
OD127-48HB is DC Fans manufactured by Orion Fans.
- Part of the OD127-12HHB comparator family.
- Part of the OD127-12HHB comparator family.

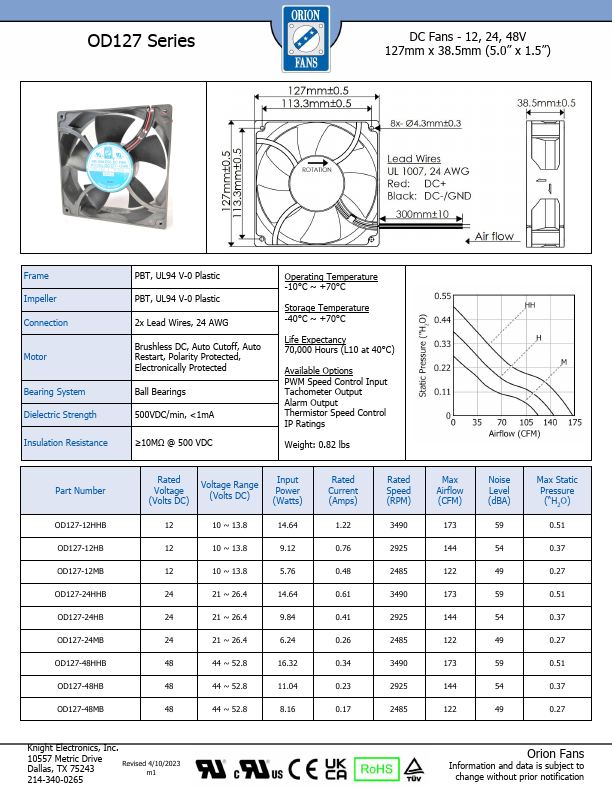

OD127 Series
DC Fans
- 12, 24, 48V 127mm x 38.5mm (5.0” x 1.5”)
Frame Impeller Connection
Motor
Bearing System Dielectric Strength Insulation Resistance
PBT, UL94 V-0 Plastic PBT, UL94 V-0 Plastic 2x Lead Wires, 24 AWG
Brushless DC, Auto Cutoff, Auto Restart, Polarity Protected, Electronically Protected
Ball Bearings 500VDC/min, <1m A
≥10MΩ @ 500 VDC
Operating Temperature -10°C ~ +70°C
Storage Temperature -40°C ~ +70°C
Life Expectancy 70,000 Hours (L10 at 40°C)
Available Options PWM Speed Control Input Tachometer Output Alarm Output Thermistor Speed Control IP Ratings
Weight: 0.82 lbs
Part Number
OD127-12HHB OD127-12HB OD127-12MB OD127-24HHB OD127-24HB OD127-24MB OD127-48HHB OD127-48HB OD127-48MB
Rated Voltage (Volts DC)
Voltage Range (Volts DC)
Input Power (Watts)
10 ~ 13.8
10 ~ 13.8
10 ~ 13.8
21 ~ 26.4
21 ~ 26.4
21 ~ 26.4
44 ~ 52.8
44 ~ 52.8
44 ~ 52.8
Rated Current...
