OD172SAP-48LB02A
OD172SAP-48LB02A is DC Fans manufactured by Orion Fans.
- Part of the OD172SAP-12HHB10A comparator family.
- Part of the OD172SAP-12HHB10A comparator family.

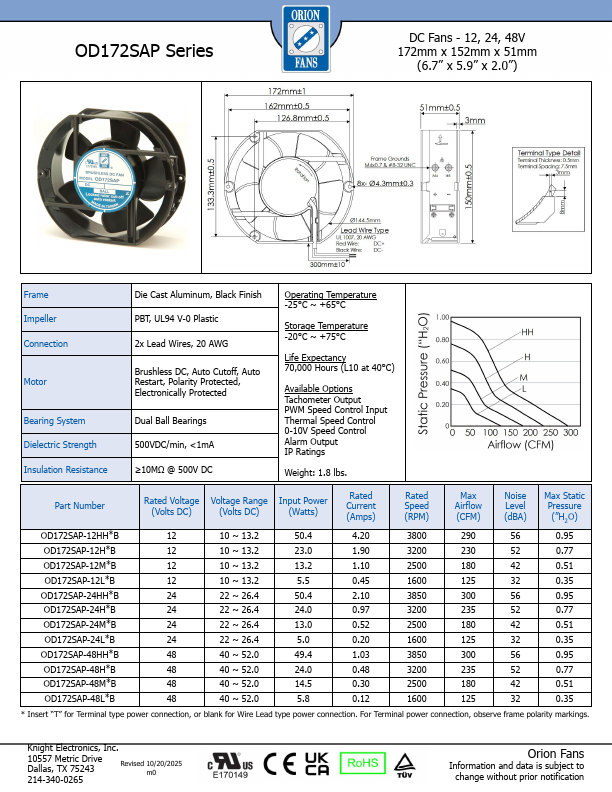

OD172SAP Series
DC Fans
- 12, 24, 48V 172mm x 152mm x 51mm
(6.7” x 5.9” x 2.0”)
Frame Impeller Connection
Motor
Bearing System Dielectric Strength Insulation Resistance
Die Cast Aluminum, Black Finish PBT, UL94 V-0 Plastic 2x Lead Wires, 20 AWG
Brushless DC, Auto Cutoff, Auto Restart, Polarity Protected, Electronically Protected
Dual Ball Bearings 500VDC/min, <1m A ≥10MΩ @ 500V DC
Operating Temperature -25°C ~ +65°C
Storage Temperature -20°C ~ +75°C
Life Expectancy 70,000 Hours (L10 at 40°C)
Available Options Tachometer Output PWM Speed Control Input Thermal Speed Control 0-10V Speed Control Alarm Output IP Ratings
Weight: 1.8 lbs.
Part Number
Rated Voltage Voltage Range Input Power
(Volts DC)
(Volts DC)
(Watts)
Rated Current (Amps)
Rated Speed (RPM)
Max Airflow (CFM)
Noise Level (d BA)
Max Static Pressure (”H2O)
OD172SAP-12HH- B
10 ~ 13.2
OD172SAP-12H- B
10 ~ 13.2
OD172SAP-12M-...
