OD172SAP Datasheet PDF

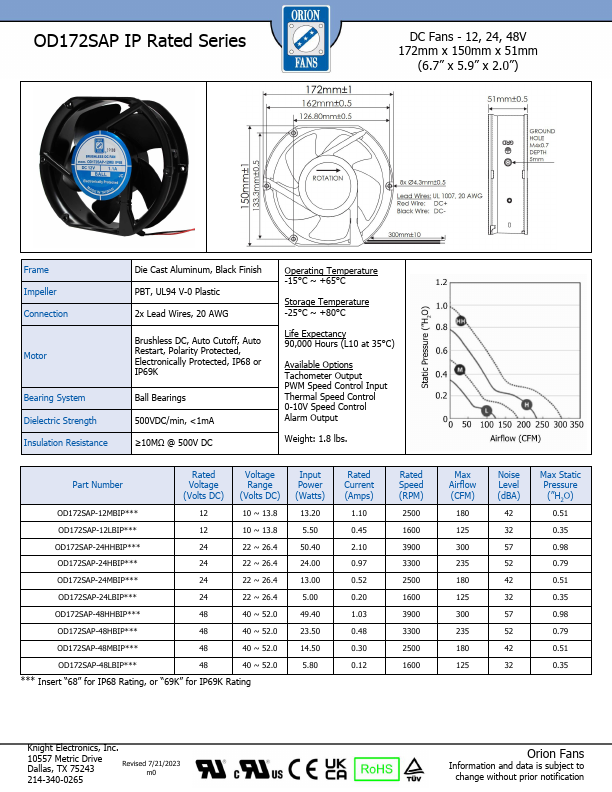

OD172SAP IP Rated Series DC Fans - 12, 24, 48V 172mm x 150mm x 51mm (6.7” x 5.9” x 2.0”) Frame Impeller Connection Motor Bearing System Dielectric Strength Insulation Resistance Die Cast Aluminum, Black Finish PBT, UL94 V-0 Plastic 2x Lead Wires, 20 AWG Brushless DC, Auto Cutoff, Auto Restart, Polarity Protected, Electronically Protected, IP68 or IP69K Ball Bearings 500VDC/min, <1mA ≥10MΩ @ 500V DC Operating Temperature -15°C ~ +65°C Storage Temperature -25°C ~ +80°C Life Expectancy 90,000 Hours (L10 at 35°C) Available Options Tachometer Output PWM Speed Control Input Thermal Speed Control 0-10V Speed Control Alarm Output Weight: 1.8 lbs. Part Number Rated Voltage (Volts DC) Voltage Range (Volts DC) OD172SAP-12MBIP*** 12 10 ~ 13.8 OD172SAP-12LBIP*** 12 10 ~ 13.8 OD172SAP-24HHBIP*** 24 22 ~ 26.4 OD172SAP-24HBIP*** 24 22 ~ 26.4 OD172SAP-24MBIP*** 24 22 ~ 26.4 OD172SAP-24LBIP*** 24 22 ~ 26.4 OD172SAP-48HHBIP*** 48 40 ~ 52.0 OD172SAP-48HBIP*** 48 40 ~ 52.0 OD172SAP-48MBIP*** 48 40 ~ 52.0 O...
