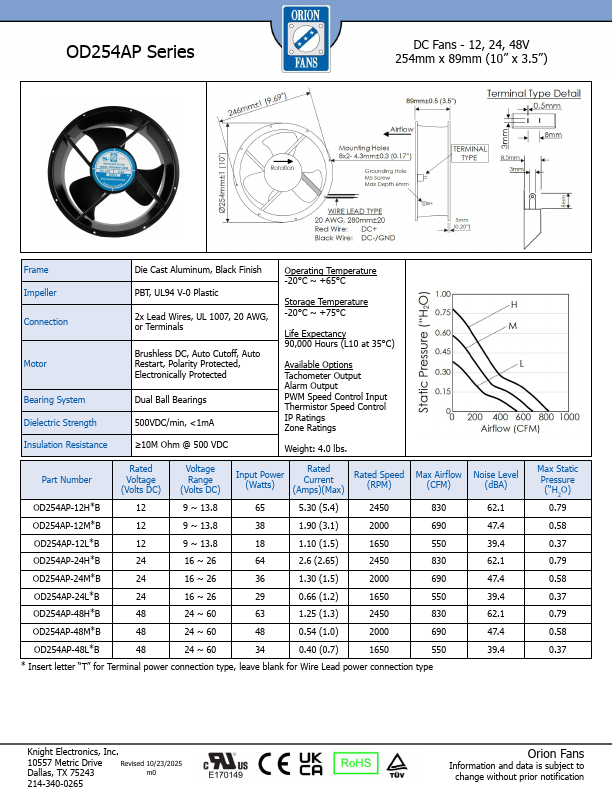

OD254AP
OD254AP Series
DC Fans
- 12, 24, 48V 254mm x 89mm (10” x 3.5”)
Frame Impeller Connection
Motor
Bearing System Dielectric Strength Insulation Resistance
Die Cast Aluminum, Black Finish
PBT, UL94 V-0 Plastic
2x Lead Wires, UL 1007, 20 AWG, or Terminals
Brushless DC, Auto Cutoff, Auto Restart, Polarity Protected, Electronically Protected
Dual Ball Bearings
500VDC/min, <1m A
≥10M Ohm @ 500 VDC
Operating Temperature -20°C ~ +65°C
Storage Temperature -20°C ~ +75°C
Life Expectancy 90,000 Hours (L10 at 35°C)
Available Options Tachometer Output Alarm Output PWM Speed Control Input Thermistor Speed Control IP Ratings Zone Ratings
Weight: 4.0 lbs.
Part Number
Rated Voltage (Volts DC)
Voltage Range (Volts DC)
Input Power (Watts)
Rated Current (Amps)(Max)
Rated Speed (RPM)
Max Airflow (CFM)
Noise Level (d BA)
OD254AP-12H- B
9 ~ 13.8
5.30 (5.4)
OD254AP-12M- B
9 ~ 13.8
1.90...
