OD280AN Datasheet PDF

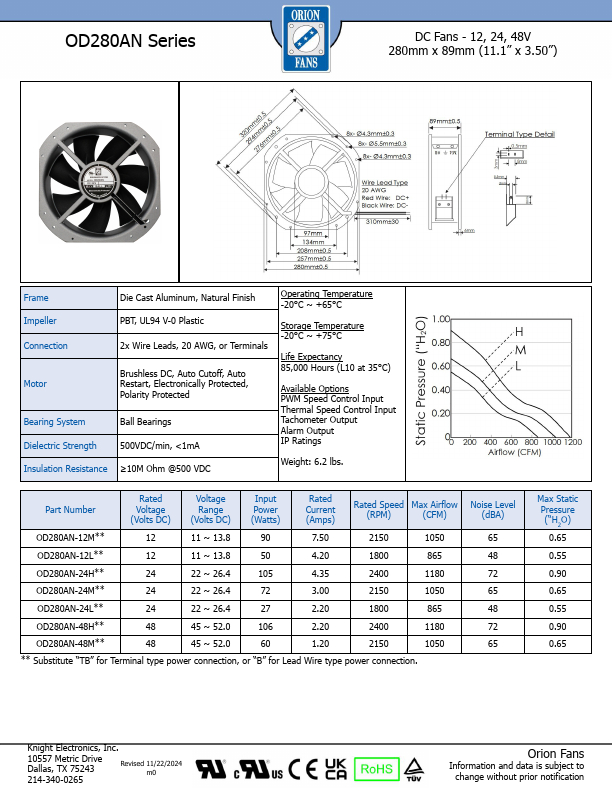

OD280AN Series DC Fans - 12, 24, 48V 280mm x 89mm (11.1” x 3.50”) Frame Impeller Connection Motor Bearing System Dielectric Strength Insulation Resistance Die Cast Aluminum, Natural Finish PBT, UL94 V-0 Plastic 2x Wire Leads, 20 AWG, or Terminals Brushless DC, Auto Cutoff, Auto Restart, Electronically Protected, Polarity Protected Ball Bearings 500VDC/min, <1mA ≥10M Ohm @500 VDC Operating Temperature -20°C ~ +65°C Storage Temperature -20°C ~ +75°C Life Expectancy 85,000 Hours (L10 at 35°C) Available Options PWM Speed Control Input Thermal Speed Control Input Tachometer Output Alarm Output IP Ratings Weight: 6.2 lbs. Part Number Rated Voltage (Volts DC) Voltage Range (Volts DC) Input Power (Watts) Rated Current (Amps) Rated Speed Max Airflow Noise Level (RPM) (CFM) (dBA) OD280AN-12M** 12 11 ~ 13.8 90 7.50 2150 1050 65 OD280AN-12L** 12 11 ~ 13.8 50 4.20 1800 865 48 OD280AN-24H** 24 22 ~ 26.4 105 4.35 2400 1180 72 OD280AN-24M** 24 22 ~ 26.4 72 3.00 2150 1050 65 OD280AN-24L** 24 22 ~ 26.4...
