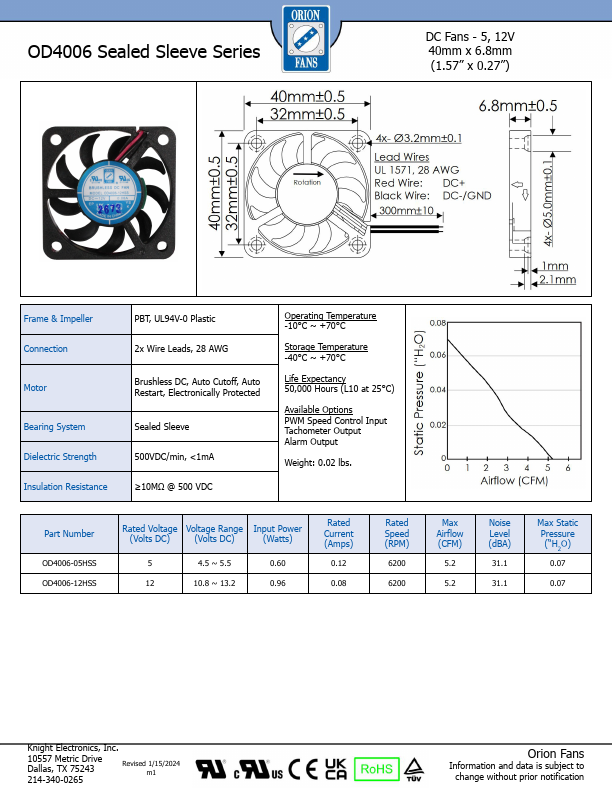

OD4006
OD4006 Sealed Sleeve Series
DC Fans
- 5, 12V 40mm x 6.8mm (1.57” x 0.27”)
Frame & Impeller Connection Motor Bearing System Dielectric Strength Insulation Resistance
PBT, UL94V-0 Plastic 2x Wire Leads, 28 AWG
Brushless DC, Auto Cutoff, Auto Restart, Electronically Protected
Sealed Sleeve 500VDC/min, <1m A ≥10MΩ @ 500 VDC
Operating Temperature -10°C ~ +70°C
Storage Temperature -40°C ~ +70°C
Life Expectancy 50,000 Hours (L10 at 25°C)
Available Options PWM Speed Control Input Tachometer Output Alarm Output
Weight: 0.02 lbs.
Part Number
OD4006-05HSS OD4006-12HSS
Rated Voltage Voltage Range Input Power
(Volts DC)
(Volts DC)
(Watts)
4.5 ~ 5.5
10.8 ~ 13.2
Rated Current (Amps)
Rated Speed (RPM)
Max Airflow (CFM)
Noise Level (d BA)
Max Static Pressure (“H2O)
Knight Electronics,...
