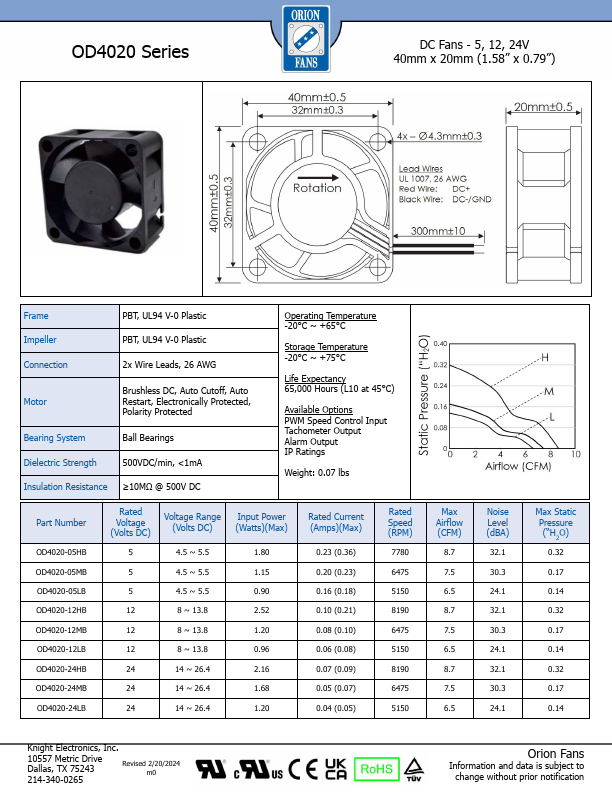

OD4020
OD4020 Series
DC Fans
- 5, 12, 24V 40mm x 20mm (1.58” x 0.79”)
Frame Impeller
PBT, UL94 V-0 Plastic PBT, UL94 V-0 Plastic
Connection
2x Wire Leads, 26 AWG
Motor
Brushless DC, Auto Cutoff, Auto Restart, Electronically Protected, Polarity Protected
Bearing System
Ball Bearings
Dielectric Strength
500VDC/min, <1m A
Insulation Resistance ≥10MΩ @ 500V DC
Operating Temperature -20°C ~ +65°C
Storage Temperature -20°C ~ +75°C
Life Expectancy 65,000 Hours (L10 at 45°C)
Available Options PWM Speed Control Input Tachometer Output Alarm Output IP Ratings
Weight: 0.07 lbs
Part Number
OD4020-05HB OD4020-05MB OD4020-05LB OD4020-12HB OD4020-12MB OD4020-12LB OD4020-24HB OD4020-24MB OD4020-24LB
Rated Voltage (Volts DC)
Voltage Range (Volts DC)
Input Power (Watts)(Max)
4.5 ~ 5.5
4.5 ~ 5.5
4.5 ~ 5.5
8 ~ 13.8
8 ~...
