OD6010-05LB Datasheet | Orion Fans

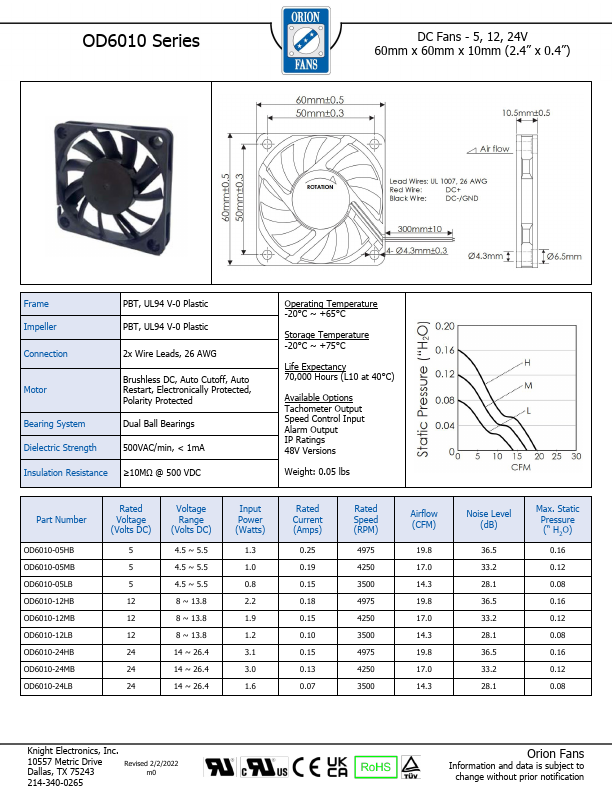

OD6010 Series DC Fans - 5, 12, 24V 60mm x 60mm x 10mm (2.4” x 0.4”) Frame Impeller PBT, UL94 V-0 Plastic PBT, UL94 V-0 Plastic Connection 2x Wire Leads, 26 AWG Motor Bearing System Dielectric Strength Brushless DC, Auto Cutoff, Auto Restart, Electronically Protected, Polarity Protected Dual Ball Bearings 500VAC/min, < 1m A Insulation Resistance ≥10MΩ @ 500 VDC Operating Temperature -20°C ~ +65°C Storage Temperature -20°C ~ +75°C Life Expectancy 70,000 Hours (L10 at 40°C) Available Options Tachometer Output Speed Control Input Alarm Output IP Ratings 48V Versions Weight: 0.05 lbs Part Number OD6010-05HB OD6010-05MB OD6010-05LB OD6010-12HB OD6010-12MB OD6010-12LB OD6010-24HB OD6010-24MB OD6010-24LB Rated Voltage (Volts DC) 5 5 5 12 12 12 24 24 24 Voltage Range (Volts DC) 4.5 ~ 5.5 4.5 ~ 5.5 4.5 ~ 5.5 8 ~ 13.8 8 ~ 13.8 8 ~ 13.8 14 ~ 26.4 14 ~ 26.4 14 ~ 26.4 Input Power (Watts) 1.3 1.0 0.8 2.2 1.9 1.2 3.1 3.0 1.6 Rated Current (Amps) 0.25 0.19 0.15 0.18 0.15 0.10 0.15 0.13 0.07 Rated Speed (RPM) 4975 4250 3500 4975 4250 3500 4975 4250 3500 Airflow...
