OD6015-05HB
OD6015-05HB is DC Fans manufactured by Orion Fans.

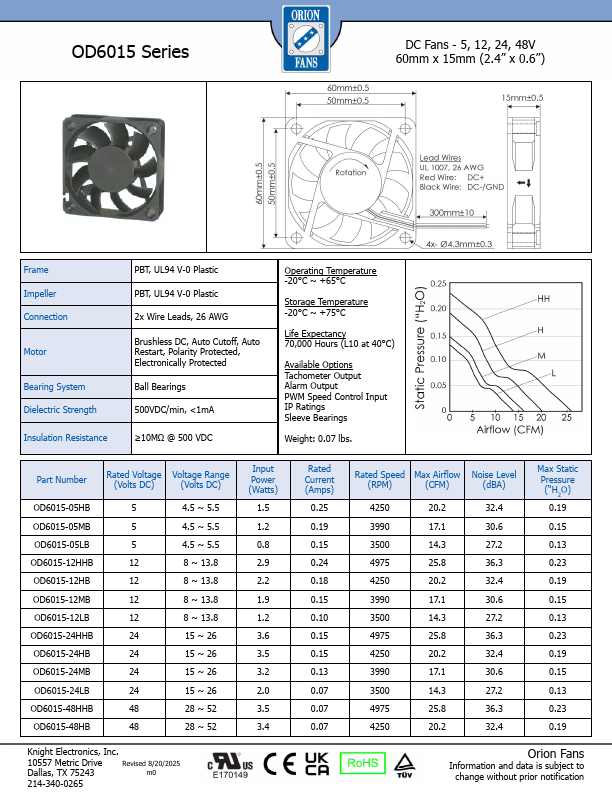

OD6015 Series
DC Fans
- 5, 12, 24, 48V 60mm x 15mm (2.4” x 0.6”)
Frame Impeller Connection
Motor
Bearing System Dielectric Strength Insulation Resistance
PBT, UL94 V-0 Plastic PBT, UL94 V-0 Plastic 2x Wire Leads, 26 AWG
Brushless DC, Auto Cutoff, Auto Restart, Polarity Protected, Electronically Protected
Ball Bearings 500VDC/min, <1m A
≥10MΩ @ 500 VDC
Operating Temperature -20°C ~ +65°C
Storage Temperature -20°C ~ +75°C
Life Expectancy 70,000 Hours (L10 at 40°C)
Available Options Tachometer Output Alarm Output PWM Speed Control Input IP Ratings Sleeve Bearings
Weight: 0.07 lbs.
Part Number
Rated Voltage Voltage Range
(Volts DC)
(Volts DC)
OD6015-05MB
OD6015-05LB
OD6015-12HHB
OD6015-12HB
OD6015-12MB
OD6015-12LB
OD6015-24HHB
OD6015-24HB
OD6015-24MB
OD6015-24LB
OD6015-48HHB...
