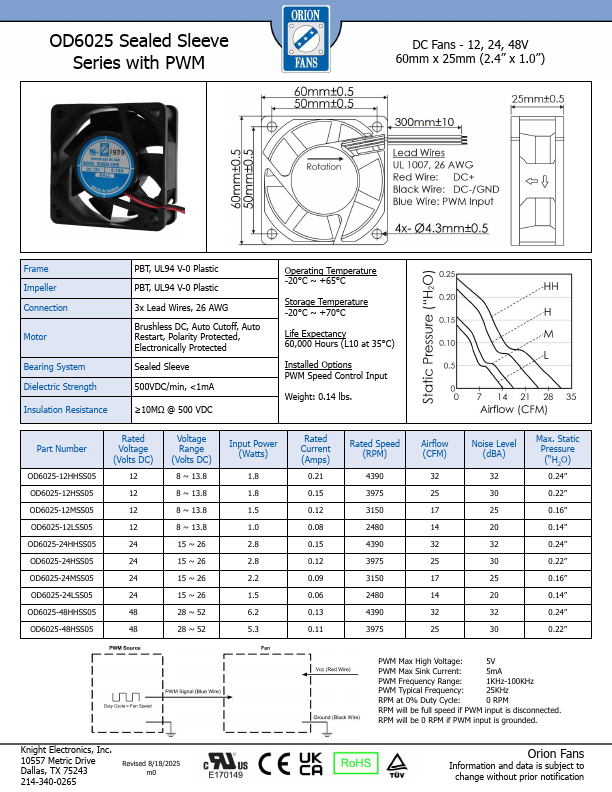

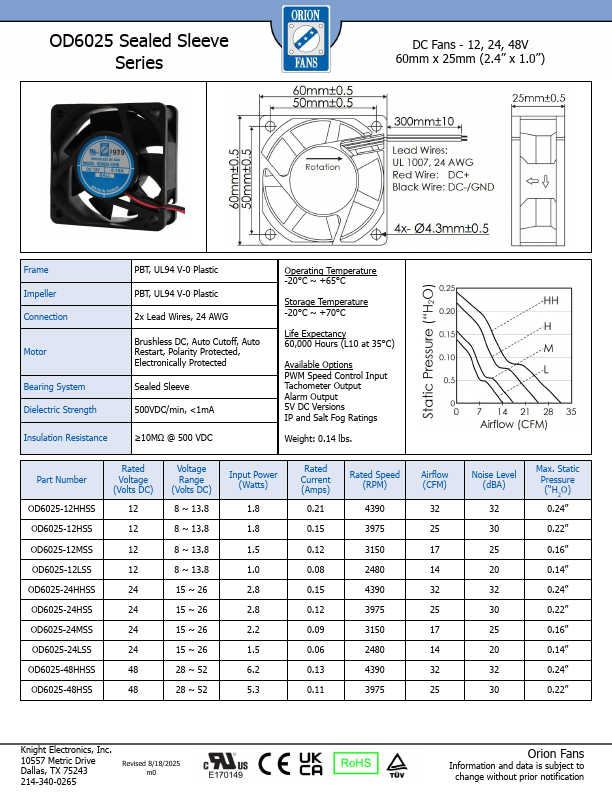

OD6025-12HHB datasheet by Orion Fans.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | OD6025-12HHB |
|---|---|
| Datasheet | OD6025-12HHB OD6025 Datasheet (PDF) |
| File Size | 645.08 KB |
| Manufacturer | Orion Fans |
| Description | DC Fans |
|
|
1KHz-100KHz PWM Typical Frequency: 25KHz RPM at 0% Duty Cycle:.
View all Orion Fans datasheets
| Part Number | Description |
|---|---|
| OD6025-12HHB01A | DC Fans |
| OD6025-12HHB02A | DC Fans |
| OD6025-12HHB05 | DC Fans |
| OD6025-12HHB10A | DC Fans |
| OD6025-12HB | DC Fans |
| OD6025-12HB01A | DC Fans |
| OD6025-12HB02A | DC Fans |
| OD6025-12HB05 | DC Fans |
| OD6025-12HB10A | DC Fans |
| OD6025-12LB | DC Fans |
