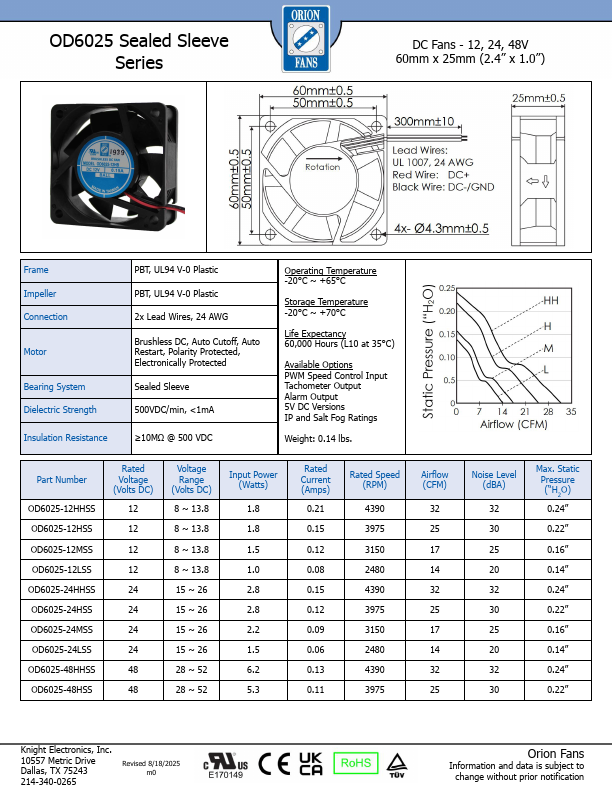

OD6025 Sealed Sleeve Series DC Fans - 12, 24, 48V 60mm x 25mm (2.4” x 1.0”) Frame Impeller Connection Motor Bearing System Dielectric Strength Insulation Resistance PBT, UL94 V-0 Plastic PBT, UL94 V-0 Plastic 2x Lead Wires, 24 AWG Brushless DC, Auto Cutoff, Auto Restart, Polarity Protected, Electronically Protected Sealed Sleeve 500VDC/min, <1m A ≥10MΩ @ 500 VDC Operating Temperature -20°C ~ +65°C Storage Temperature -20°C ~ +70°C Life Expectancy 60,000 Hours (L10 at 35°C) Available Options PWM Speed Control Input Tachometer Output Alarm Output 5V DC Versions IP and Salt Fog Ratings Weight: 0.14 lbs. Part Number OD6025-12HHSS OD6025-12HSS OD6025-12MSS OD6025-12LSS OD6025-24HHSS OD6025-24HSS OD6025-24MSS OD6025-24LSS OD6025-48HHSS OD6025-48HSS Rated Voltage (Volts DC) 12 12 12 12 24 24 24 24 48 48 Voltage Range (Volts DC) 8 ~ 13.8 8 ~ 13.8 8 ~ 13.8 8 ~ 13.8 15 ~ 26 15 ~ 26 15 ~ 26 15 ~ 26 28 ~ 52 28 ~ 52 Input Power (Watts) 1.8 1.8 1.5 1.0 2.8 2.8 2.2 1.5 6.2 5.3 Rated Current (Amps) 0.21 0.15 0.12 0.08 0.15 0.12 0.09 0.06 0.13 0.11 Rated Speed (RPM) 4390 3975 3150 2480 4390 3975 3150 2480 4390 3975 Airflow (CFM) 32 25 17 14 32 25 17 14 32 25 Noise Level (d BA) 32 30 25 20 32 30 25 20 32...
