• Part: OD6025-24HB
  • Manufacturer: Orion Fans
  • Size: 645.08 KB
Download OD6025-24HB Datasheet PDF

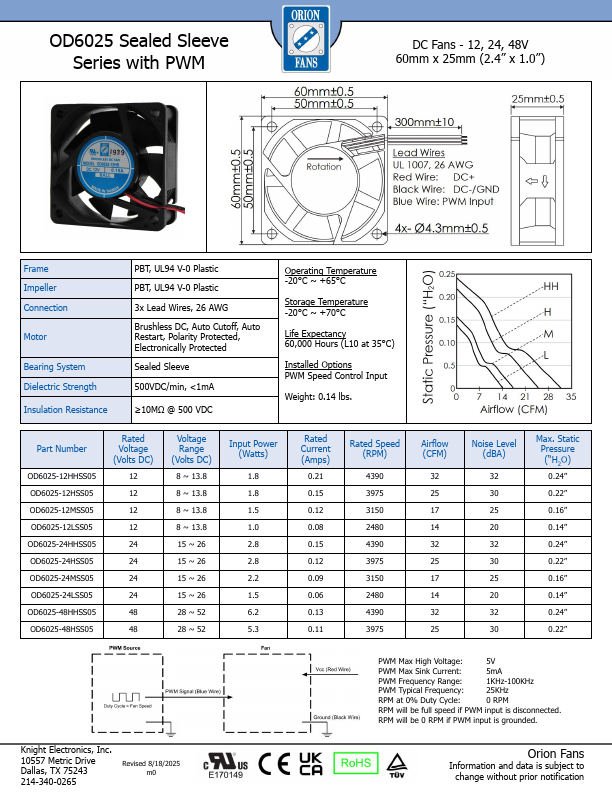

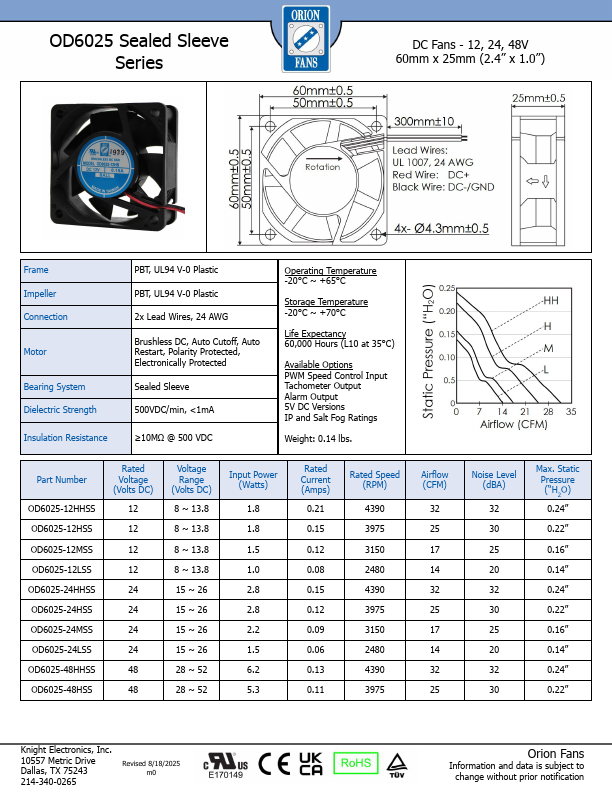

OD6025-24HB datasheet preview
OD6025-24HB page 2
Page 2

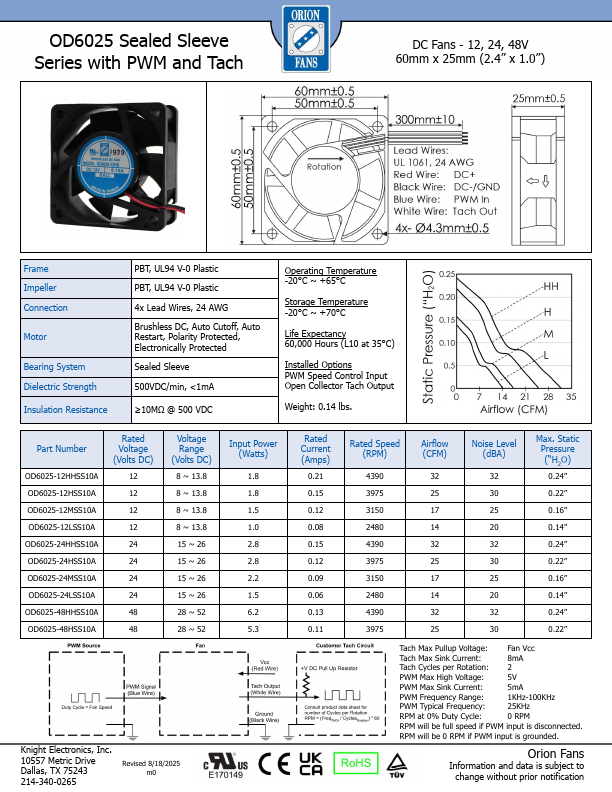

OD6025-24HB page 3
Page 3

Related Orion Fans Datasheets

Part Number Description
OD6025-24HB01A DC Fans
OD6025-24HB02A DC Fans
OD6025-24HB05 DC Fans
OD6025-24HB10A DC Fans
OD6025-24HHB DC Fans

Orion Fans datasheets

OD6025-24HB Description

1KHz-100KHz PWM Typical Frequency: 25KHz RPM at 0% Duty Cycle:.
