• Part: OD6025-48HHB01A
  • Manufacturer: Orion Fans
  • Size: 645.08 KB
Download OD6025-48HHB01A Datasheet PDF

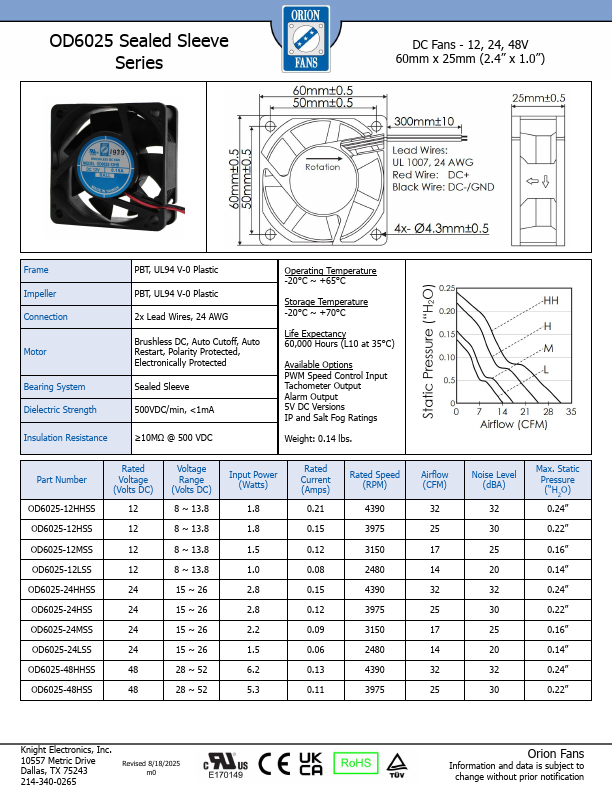

OD6025-48HHB01A datasheet preview

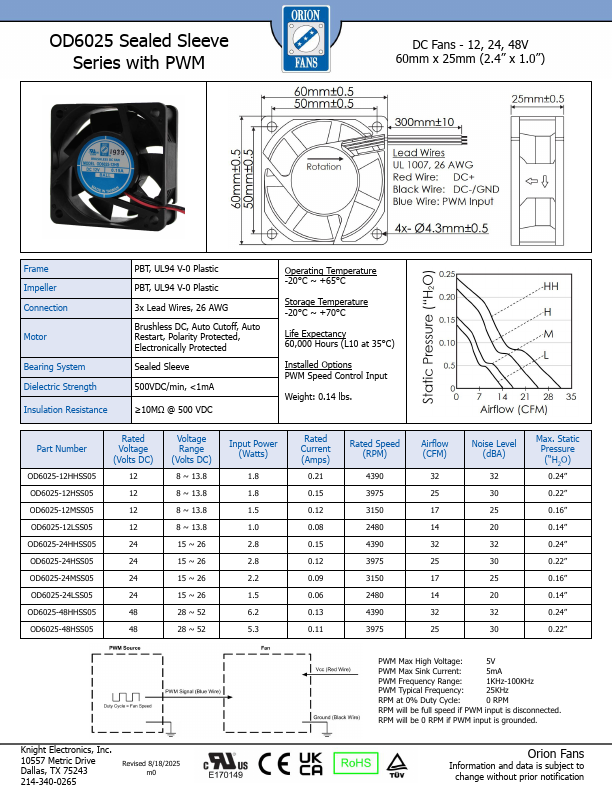

OD6025-48HHB01A page 2
Page 2

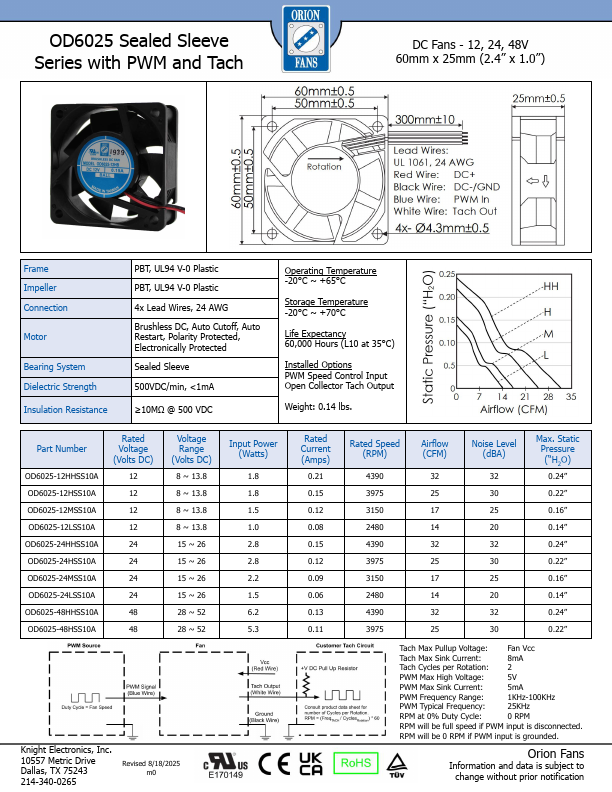

OD6025-48HHB01A page 3
Page 3

Related Orion Fans Datasheets

Part Number Description
OD6025-48HHB02A DC Fans
OD6025-48HHB05 DC Fans
OD6025-48HHB DC Fans
OD6025-48HHB10A DC Fans
OD6025-48HB DC Fans

Orion Fans datasheets

OD6025-48HHB01A Description

1KHz-100KHz PWM Typical Frequency: 25KHz RPM at 0% Duty Cycle:.
