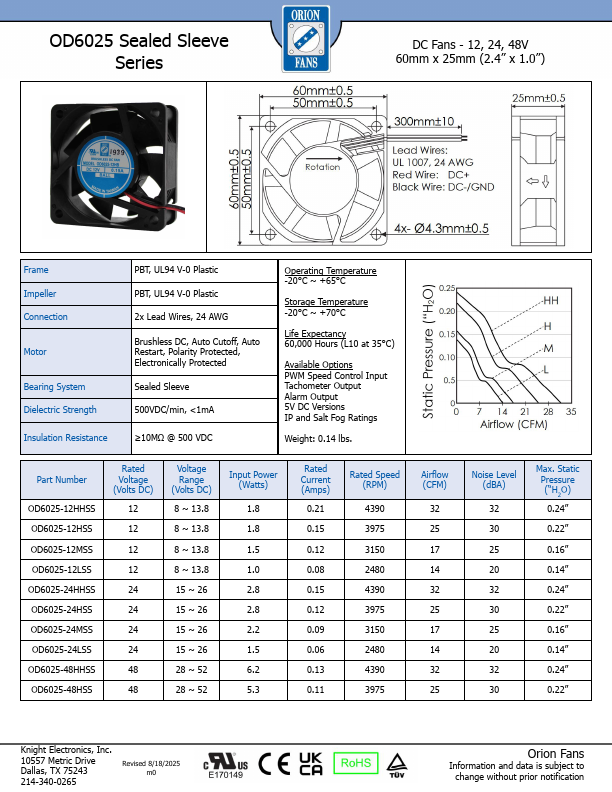

OD6025
OD6025 Sealed Sleeve Series
DC Fans
- 12, 24, 48V 60mm x 25mm (2.4” x 1.0”)
Frame Impeller Connection
Motor
Bearing System Dielectric Strength Insulation Resistance
PBT, UL94 V-0 Plastic PBT, UL94 V-0 Plastic 2x Lead Wires, 24 AWG
Brushless DC, Auto Cutoff, Auto Restart, Polarity Protected, Electronically Protected
Sealed Sleeve 500VDC/min, <1m A
≥10MΩ @ 500 VDC
Operating Temperature -20°C ~ +65°C
Storage Temperature -20°C ~ +70°C
Life Expectancy 60,000 Hours (L10 at 35°C)
Available Options PWM Speed Control Input Tachometer Output Alarm Output 5V DC Versions IP and Salt Fog Ratings
Weight: 0.14 lbs.
Part Number
OD6025-12HHSS OD6025-12HSS OD6025-12MSS OD6025-12LSS OD6025-24HHSS OD6025-24HSS OD6025-24MSS OD6025-24LSS OD6025-48HHSS OD6025-48HSS
Rated Voltage (Volts DC)
12 12 12 12 24 24 24 24 48 48
Voltage Range (Volts DC) 8 ~ 13.8 8 ~ 13.8 8 ~ 13.8 8 ~ 13.8 15 ~ 26 15 ~ 26 15 ~ 26 15 ~ 26 28 ~ 52 28 ~ 52
Input Power (Watts)
1.8 1.8 1.5 1.0 2.8 2.8 2.2 1.5 6.2 5.3
Rated Current...
