OD7025-12HBXC10A datasheet by Orion Fans.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | OD7025-12HBXC10A |
|---|---|
| Datasheet | OD7025-12HBXC10A OD7025-12HBXC Datasheet (PDF) |
| File Size | 769.56 KB |
| Manufacturer | Orion Fans |
| Description | DC Fans |
|
|

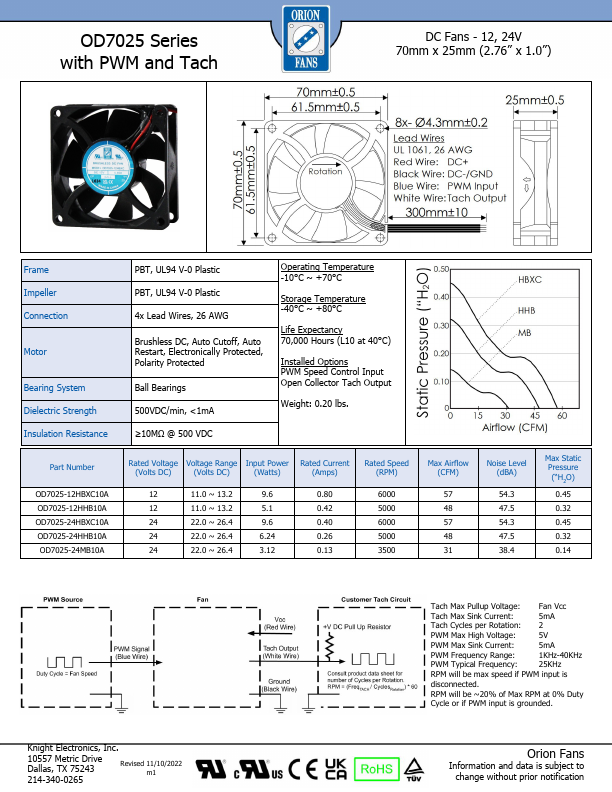

Fan Vcc Tach Max Sink Current: 5mA Tach Cycles per Rotation: 1KHz-40KHz PWM Typical Frequency:.
View all Orion Fans datasheets
| Part Number | Description |
|---|---|
| OD7025-12HBXC | DC Fans |
| OD7025-12HBXC01A | DC Fans |
| OD7025-12HHB | DC Fans |
| OD7025-12HHB01A | DC Fans |
| OD7025-12HHB10A | DC Fans |
| OD7025-24HBXC | DC Fans |
| OD7025-24HBXC01A | DC Fans |
| OD7025-24HBXC10A | DC Fans |
| OD7025-24HHB | DC Fans |
| OD7025-24HHB01A | DC Fans |
