OD7025-24HHB01A
OD7025-24HHB01A is DC Fans manufactured by Orion Fans.
- Part of the OD7025-12HBXC comparator family.
- Part of the OD7025-12HBXC comparator family.

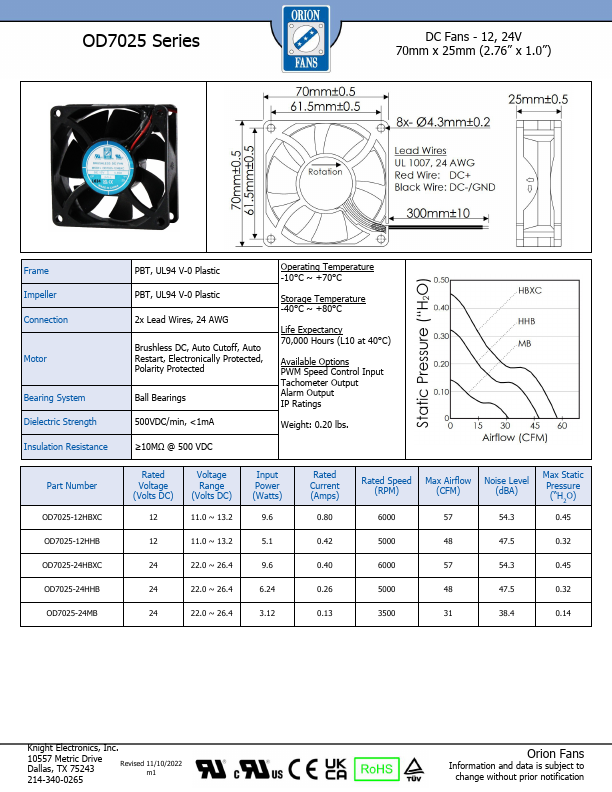

OD7025 Series
DC Fans
- 12, 24V 70mm x 25mm (2.76” x 1.0”)
Frame Impeller Connection
Motor
Bearing System Dielectric Strength Insulation Resistance
Part Number OD7025-12HBXC OD7025-12HHB OD7025-24HBXC OD7025-24HHB OD7025-24MB
PBT, UL94 V-0 Plastic PBT, UL94 V-0 Plastic 2x Lead Wires, 24 AWG
Brushless DC, Auto Cutoff, Auto Restart, Electronically Protected, Polarity Protected
Ball Bearings 500VDC/min, <1m A ≥10MΩ @ 500 VDC
Operating Temperature -10°C ~ +70°C
Storage Temperature -40°C ~ +80°C
Life Expectancy 70,000 Hours (L10 at 40°C)
Available Options PWM Speed Control Input Tachometer Output Alarm Output IP Ratings
Weight: 0.20 lbs.
Rated Voltage (Volts DC)
Voltage Range (Volts DC)
11.0 ~ 13.2
11.0 ~ 13.2
22.0 ~ 26.4
22.0 ~ 26.4
22.0 ~ 26.4
Input Power (Watts)
Rated Current (Amps)
Rated Speed (RPM)
Max Airflow (CFM)
Noise Level (d BA)
Max Static Pressure (“H2O)
Knight Electronics, Inc.
10557 Metric Drive Dallas, TX 75243...
