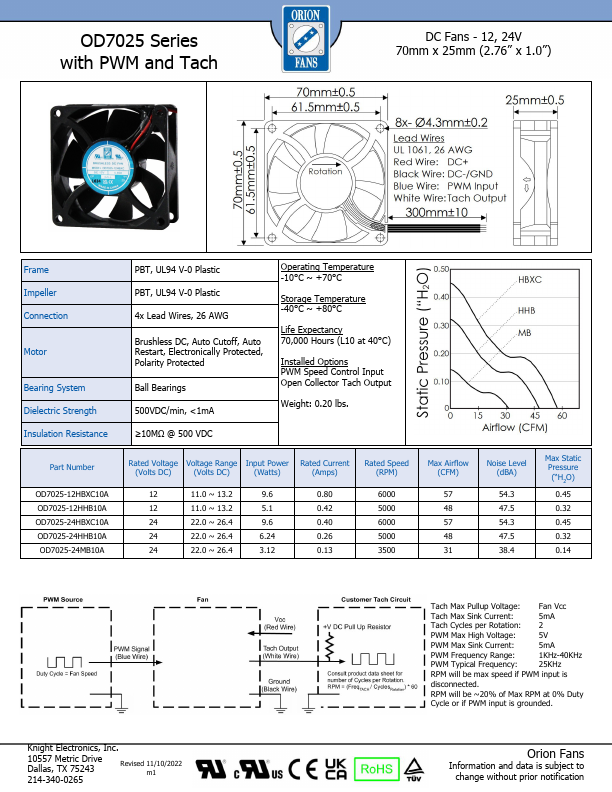

OD7025-24MB10A Description
Fan Vcc Tach Max Sink Current: 5mA Tach Cycles per Rotation: 1KHz-40KHz PWM Typical Frequency:.
- Part: OD7025-24MB10A
- Manufacturer: Orion Fans
- Size: 769.56 KB
Related Orion Fans Datasheets
| Part Number | Description |
|---|---|
| OD7025-24MB | DC Fans |
| OD7025-24MB01A | DC Fans |
| OD7025-24HBXC | DC Fans |
| OD7025-24HBXC01A | DC Fans |
| OD7025-24HBXC10A | DC Fans |
