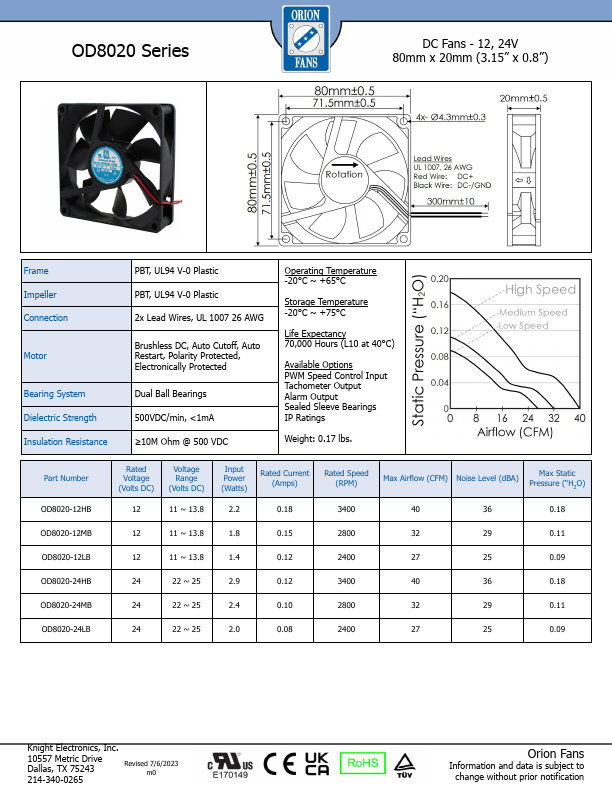

OD8020
OD8020 Series
DC Fans
- 12, 24V 80mm x 20mm (3.15” x 0.8”)
Frame Impeller Connection
Motor
Bearing System Dielectric Strength Insulation Resistance
PBT, UL94 V-0 Plastic PBT, UL94 V-0 Plastic 2x Lead Wires, UL 1007 26 AWG
Brushless DC, Auto Cutoff, Auto Restart, Polarity Protected, Electronically Protected
Dual Ball Bearings 500VDC/min, <1m A ≥10M Ohm @ 500 VDC
Operating Temperature -20°C ~ +65°C
Storage Temperature -20°C ~ +75°C
Life Expectancy 70,000 Hours (L10 at 40°C)
Available Options PWM Speed Control Input Tachometer Output Alarm Output Sealed Sleeve Bearings IP Ratings
Weight: 0.17 lbs.
Part Number
OD8020-12HB OD8020-12MB OD8020-12LB OD8020-24HB OD8020-24MB OD8020-24LB
Rated Voltage (Volts DC)
Voltage Range (Volts DC)
11 ~ 13.8
Input Power (Watts)
Rated Current (Amps)
Rated Speed (RPM)
Max Airflow (CFM) Noise Level (d BA)
Max Static Pressure (“H2O)
11 ~...
