OD9220-24HB
OD9220-24HB is DC Fans manufactured by Orion Fans.
- Part of the OD9220-12HB comparator family.
- Part of the OD9220-12HB comparator family.

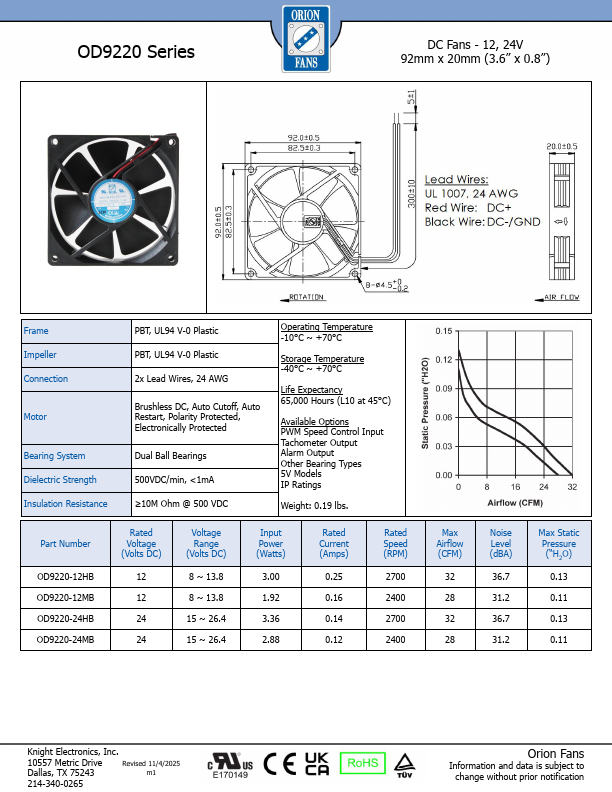

OD9220 Series
DC Fans
- 12, 24V 92mm x 20mm (3.6” x 0.8”)
Frame Impeller Connection
Motor
Bearing System Dielectric Strength Insulation Resistance
PBT, UL94 V-0 Plastic PBT, UL94 V-0 Plastic 2x Lead Wires, 24 AWG
Brushless DC, Auto Cutoff, Auto Restart, Polarity Protected, Electronically Protected
Dual Ball Bearings 500VDC/min, <1m A ≥10M Ohm @ 500 VDC
Operating Temperature -10°C ~ +70°C
Storage Temperature -40°C ~ +70°C
Life Expectancy 65,000 Hours (L10 at 45°C)
Available Options PWM Speed Control Input Tachometer Output Alarm Output Other Bearing Types 5V Models IP Ratings
Weight: 0.19 lbs.
Part Number
OD9220-12HB OD9220-12MB OD9220-24HB OD9220-24MB
Rated Voltage (Volts DC)
Voltage Range (Volts DC)
8 ~ 13.8
8 ~ 13.8
15 ~ 26.4
15 ~ 26.4
Input Power (Watts)
Rated Current (Amps)
Rated Speed (RPM)
Max Airflow (CFM)
Noise Level (d BA)
Max Static Pressure (“H2O)
Knight Electronics, Inc.
10557 Metric Drive Revised...
