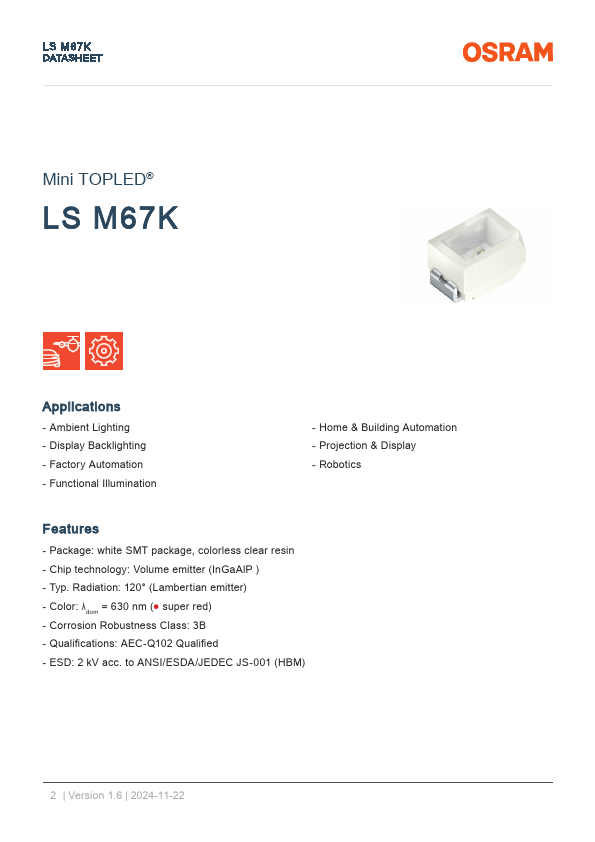

LS M67K DATASHEET
Mini TOPLED®
LS M67K
Applications
- Ambient Lighting
- Display Backlighting
- Factory Automation
- Functional Illumination
- Home & Building Automation
- Projection & Display
- Robotics
Features
- Package: white SMT package, colorless clear resin
- Chip technology: Volume emitter (InGaAlP )
- Typ. Radiation: 120° (Lambertian emitter)
- Color: λdom = 630 nm (- super red)
- Corrosion Robustness Class: 3B
- Qualifications: AEC-Q102 Qualified
- ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM)
2 | Version 1.6 | 2024-11-22
LS M67K DATASHEET

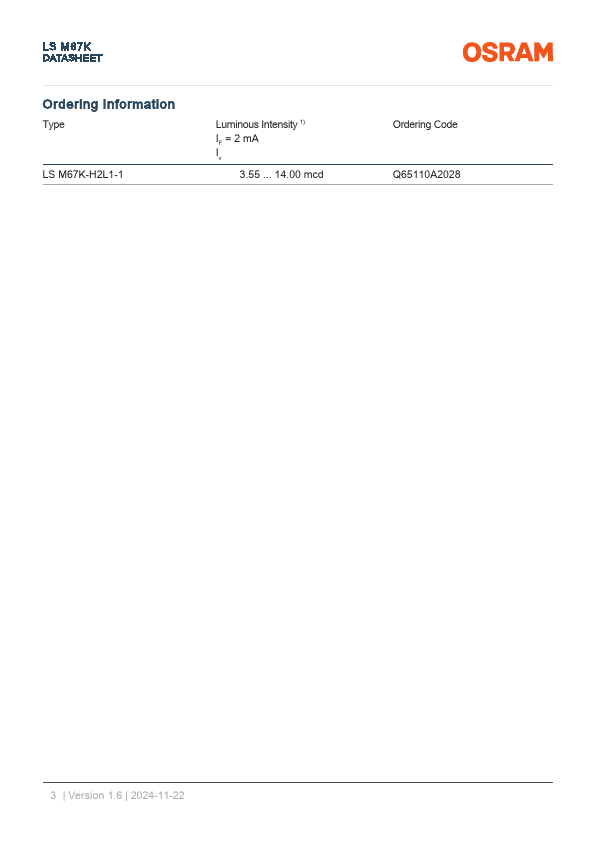

Ordering Information
Type
LS M67K-H2L1-1
Luminous Intensity 1) IF = 2 mA Iv
3 14.00 mcd
Ordering Code...
