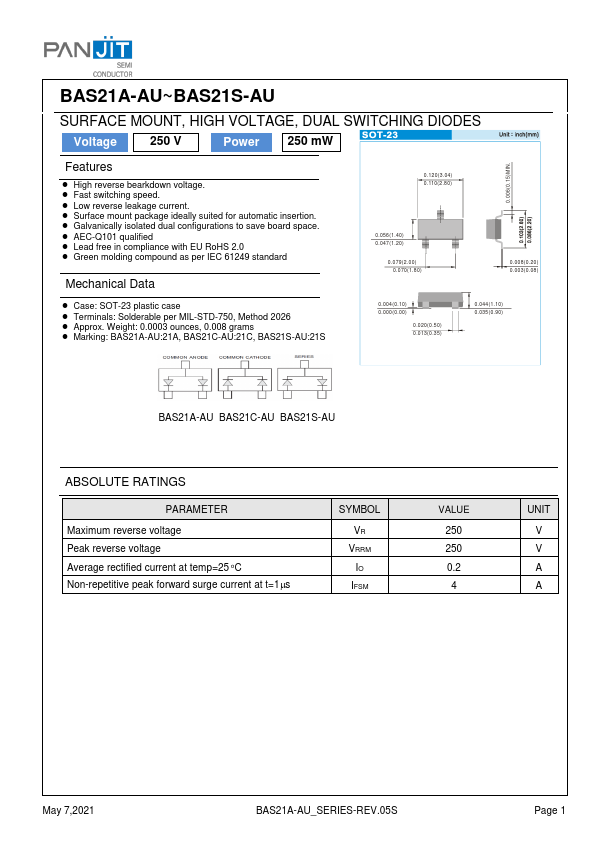

PANJIT International BAS21A-AU
250V 250mW DUAL SWITCHING DIODES
| Part No. | BAS21A-AU |
|---|---|
| Datasheet | BAS21A-AU Download |
| Manufacturer | PANJIT International |
| Description | 250V 250mW DUAL SWITCHING DIODES |
| Buy | Stock & Price |
FEATURES
● High reverse bearkdown voltage.● Fast switching speed.
● Low reverse leakage current.
● Surface mount package ideally suited for automatic insertion.
● Galvanically isolated dual configurations to save board space.
● AEC-Q101 qualified
● Lead free in compliance with EU RoHS 2.0
● Green molding compound as per IEC 61249 standard
MECHANICAL DATA
● Case: SOT-23 plastic case● Terminals: Solderable per MIL-STD-750, Method 2026
● Approx. Weight: 0.0003 ounces, 0.008 grams
● Marking: BAS21A-AU:21A, BAS21C-AU:21C, BAS21S-AU:21S 0.120(3.04) 0.110(2.80) 0.056(1.40) 0.047(1.20) 0.079(2.00) 0.070(1.80) 0.004(0.10) 0.000(0.00) 0.020(0.50) 0.013(0.35) 0.008(0.20) 0.003(0.08) 0.044(1.10) 0.035(0.90) 0.006(0.15)MIN. BAS21A-AU BAS21C-AU BAS21S-AU ABSOLUTE RATINGS PARAMETER Maximum reverse voltage Peak reverse voltage Average rectified current at temp=25 oC Non-repetitive peak forward surge current at t=1s SYMBOL VR VRRM IO IFSM VALUE 250 250 0.2 4 UNIT V V A A May 7,2021 BAS21A-AU_SERIES-...
