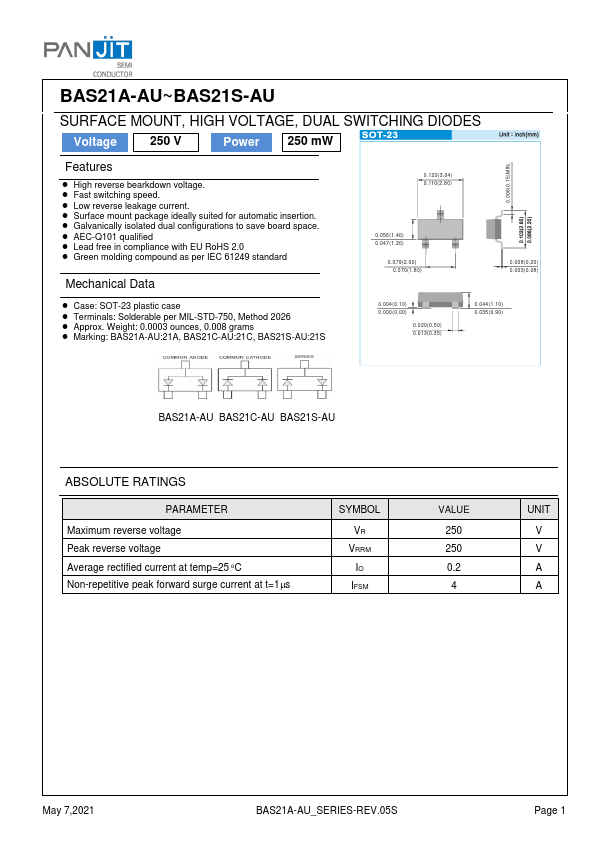

BAS21C-AU Overview
BAS21A-AU~BAS21S-AU SURFACE MOUNT, HIGH VOLTAGE, DUAL SWITCHING DIODES Voltage 250 V Power 250.
BAS21C-AU Key Features
- High reverse bearkdown voltage
- Fast switching speed
- Low reverse leakage current
- Surface mount package ideally suited for automatic insertion
- Galvanically isolated dual configurations to save board space
- AEC-Q101 qualified
- Lead free in pliance with EU RoHS 2.0
- Green molding pound as per IEC 61249 standard
- Case: SOT-23 plastic case
- Terminals: Solderable per MIL-STD-750, Method 2026
