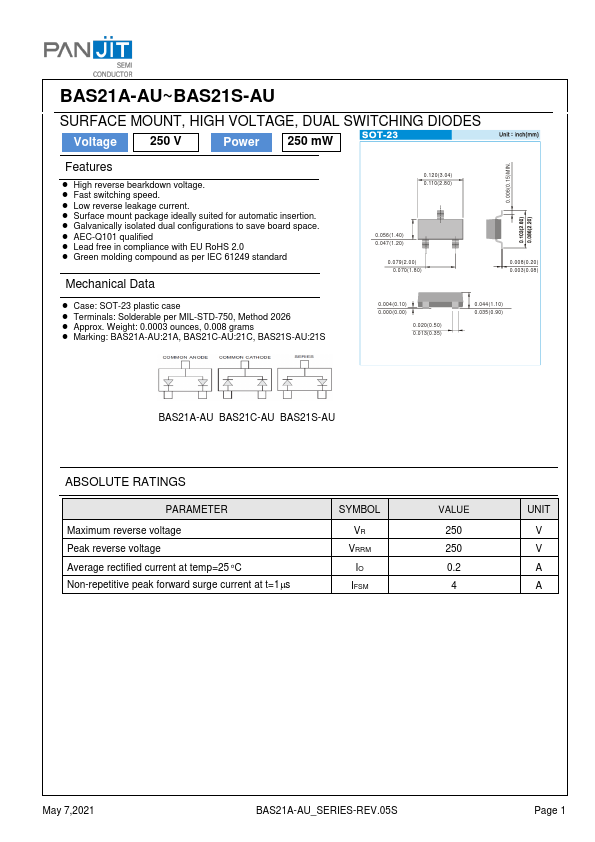

BAS21S-AU Datasheet | PanJit Semiconductor

Features - High reverse bearkdown voltage. - Fast switching speed. - Low reverse leakage current. - Surface mount package ideally suited for automatic insertion. - Galvanically isolated dual configurations to save board space. - AEC-Q101 qualified - Lead free in pliance with EU Ro HS 2.0 - Green molding pound as per IEC 61249 standard Mechanical Data - Case: SOT-23 plastic case - Terminals: Solderable per MIL-STD-750, Method 2026 - Approx. Weight: 0.0003 ounces, 0.008 grams - Marking: BAS21A-AU:21A, BAS21C-AU:21C, BAS21S-AU:21S 0.120(3.04) 0.110(2.80) 0.056(1.40) 0.047(1.20) 0.079(2.00) 0.070(1.80) 0.004(0.10) 0.000(0.00) 0.020(0.50) 0.013(0.35) 0.008(0.20) 0.003(0.08) 0.044(1.10) 0.035(0.90) 0.006(0.15)MIN. BAS21A-AU BAS21C-AU BAS21S-AU ABSOLUTE RATINGS PARAMETER Maximum reverse voltage Peak reverse voltage Average rectified current at temp=25 o C Non-repetitive peak forward surge current at t=1s SYMBOL VR VRRM IO IFSM VALUE 250 250 0.2 4 UNIT V V A A May...
