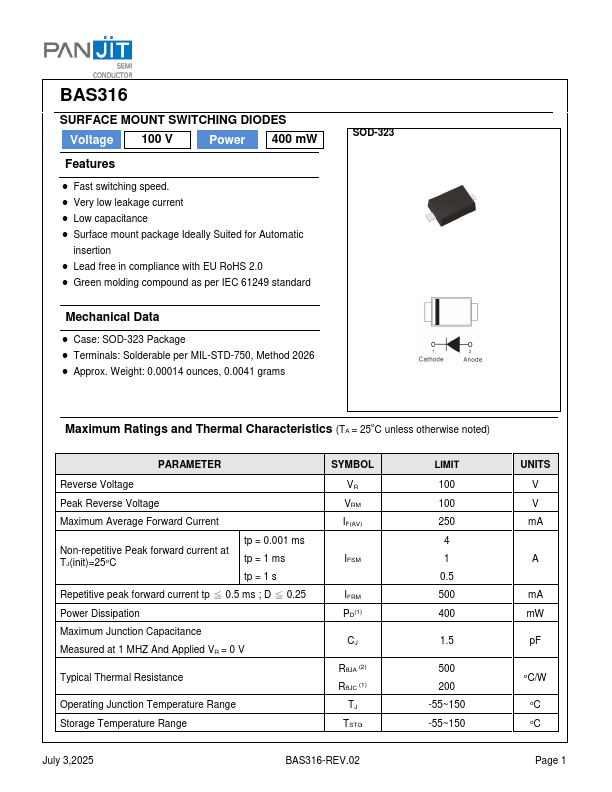

PANJIT International BAS316
SURFACE MOUNT SWITCHING DIODES
| Part No. | BAS316 |
|---|---|
| Datasheet | BAS316 Download |
| Manufacturer | PANJIT International |
| Description | SURFACE MOUNT SWITCHING DIODES |
| Buy | Stock & Price |
FEATURES
● Fast switching speed.● Very low leakage current
● Low capacitance
● Surface mount package Ideally Suited for Automatic insertion
● Lead free in compliance with EU RoHS 2.0
● Green molding compound as per IEC 61249 standard
MECHANICAL DATA
● Case: SOD-323 Package● Terminals: Solderable per MIL-STD-750, Method 2026
● Approx. Weight: 0.00014 ounces, 0.0041 grams SOD-323
MAXIMUM RATINGS

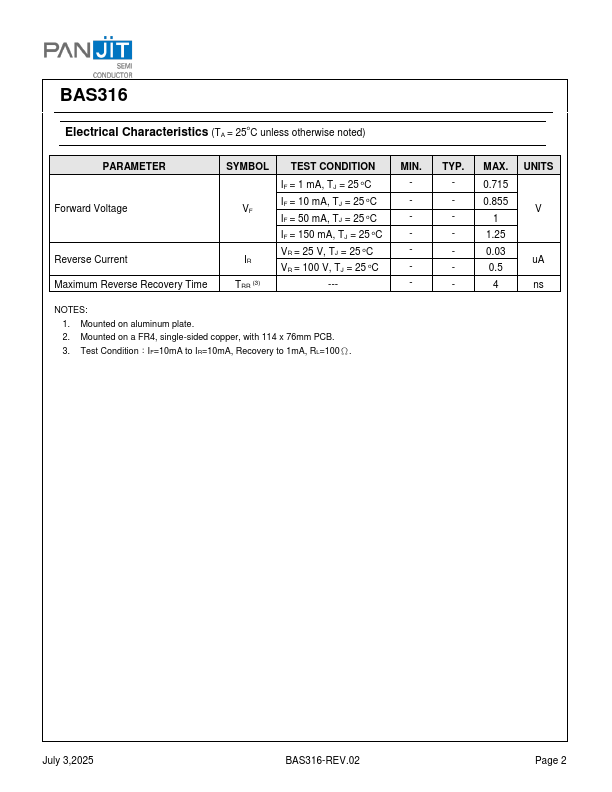

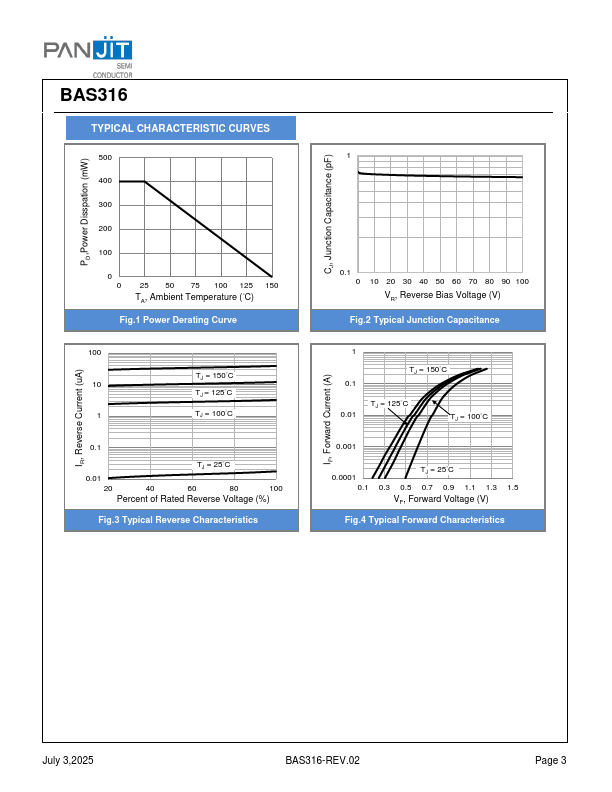

and Thermal Characteristics (TA = 25oC unless otherwise noted) PARAMETER Reverse Voltage Peak Reverse Voltage Maximum Average Forward Current Non-repetitive Peak forward current at TJ(init)=25oC tp = 0.001 ms tp = 1 ms tp = 1 s Repetitive peak forward current tp ≦ 0.5 ms ; D ≦ 0.25 Power Dissipation Maximum Junction Capacitance Measured at 1 MHZ And Applied VR = 0 V Typical Thermal Resistance Operating Junction Temperature Range Storage Temperature Range SYMBOL VR VRM IF(AV) IFSM IFRM PD(1) CJ RθJA (2) RθJC (1) TJ TSTG LIMIT 100 100 250 4 1 0.5 500 400 1.5 500 200 -55~150 -55~150 July 3,2025 BA...
