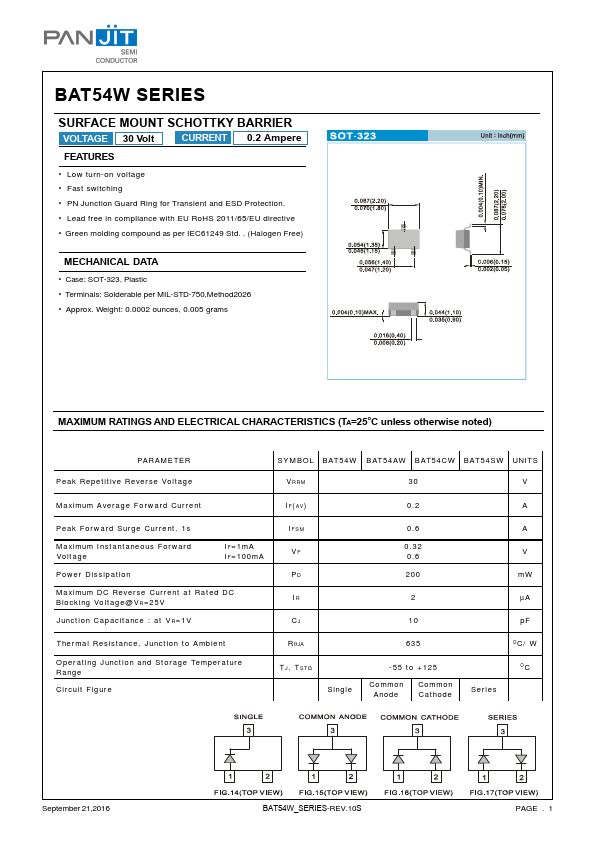

PANJIT International BAT54CW
SURFACE MOUNT SCHOTTKY BARRIER
| Part No. | BAT54CW |
|---|---|
| Datasheet | BAT54CW Download |
| Manufacturer | PANJIT International |
| Description | SURFACE MOUNT SCHOTTKY BARRIER |
| Buy | Stock & Price |
FEATURES
● Low turn-on voltage● Fast switching
● PN Junction Guard Ring for Transient and ESD Protection.
● Lead free in compliance with EU RoHS 2011/65/EU directive
● Green molding compound as per IEC61249 Std. . (Halogen Free)

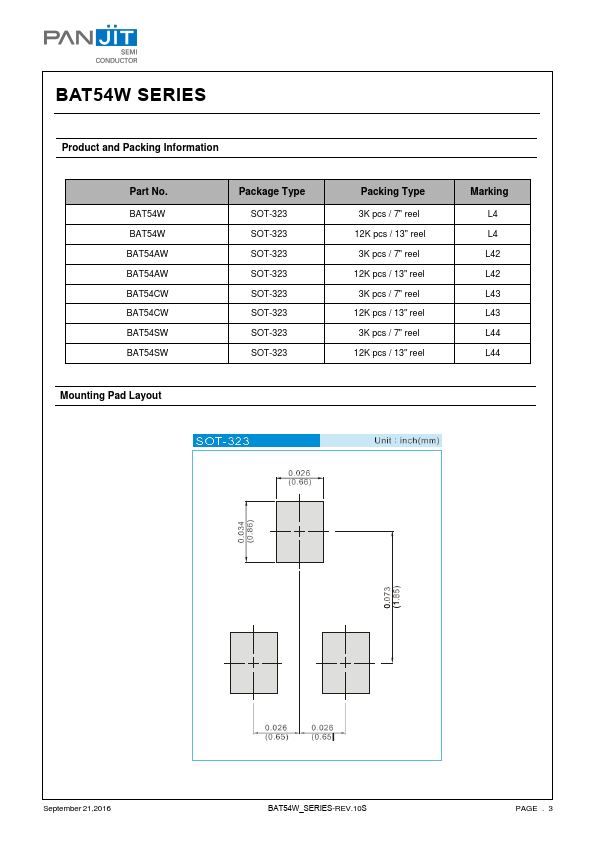

MECHANICAL DATA
● Case: SOT-323, Plastic● Terminals: Solderable per MIL-STD-750,Method2026
● Approx. Weight: 0.0002 ounces, 0.005 grams

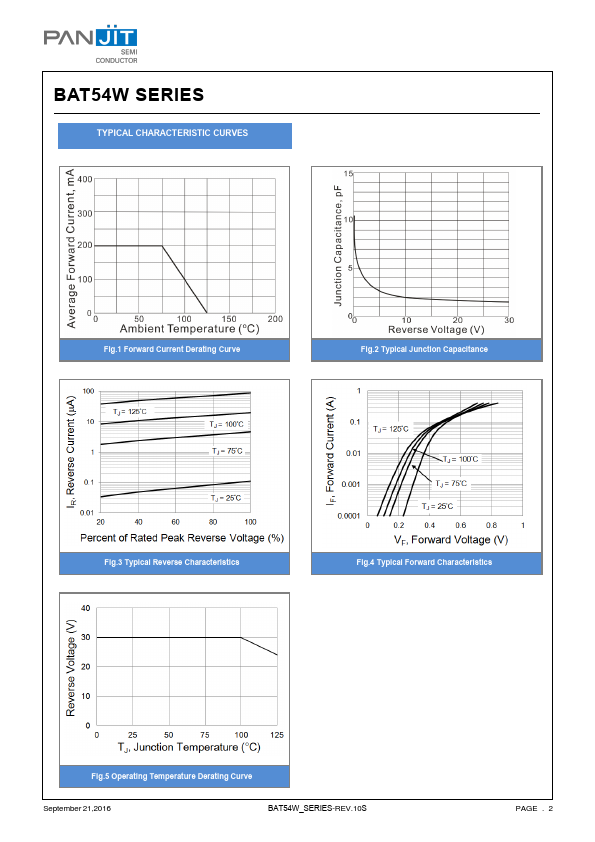

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(TA=25oC unless otherwise noted) PA R A M E T E R Peak Repetitive Reverse Voltage SY MBOL BAT54W BAT54AW BAT54CW BAT54SW UNITS VRRM 30 V Maximum Average Forward Current I F( AV) 0.2 A Peak Forward Surge Current, 1s I FSM Maximum Instantaneous Forward Vo l t a g e I F= 1 mA I F= 1 0 0 mA VF Power Dissipation PD Maximum DC Reverse Current at Rated DC Blocking Voltage@VR=25V IR Junction Capacitance : at VR=1V CJ 0.6 A 0.32 0.6 V 200 mW 2 μA 10 pF Thermal Resistance, Junction to Ambient O per at ing J unct ion and St or age Temper at ur e Range Circuit Figure R θJA TJ, TSTG Single 635 -55 to +125 Common Common Anode Cathode OC/ W OC Series September 21,2016 BAT54W_SERIES-REV.10S PAGE .
