BAV102
BAV102 is 300mW HIGH VOLTAGE SURFACE MOUNT SWITCHING DIODES manufactured by PanJit Semiconductor.
- Part of the BAV101 comparator family.
- Part of the BAV101 comparator family.

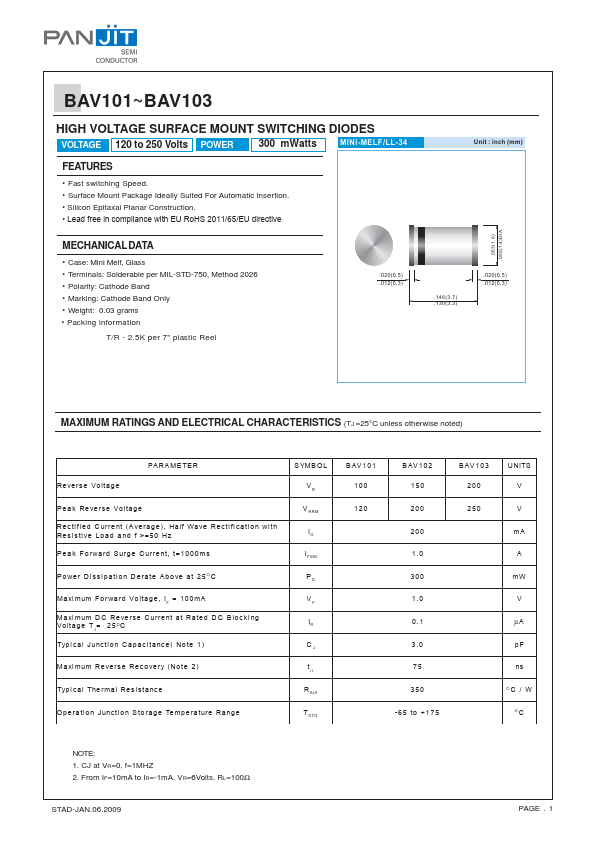

BAV101~BAV103
HIGH VOLTAGE SURFACE MOUNT SWITCHING DIODES
VOLTAGE 120 to 250 Volts POWER
300 mWatts
MINI-MELF/LL-34
Features
- Fast switching Speed.
- Surface Mount Package Ideally Suited For Automatic Insertion.
- Silicon Epitaxal Planar Construction.
- Lead free in pliance with EU RoHS 2011/65/EU directive
MECHANICAL DATA
- Case: Mini Melf, Glass
- Terminals: Solderable per MIL-STD-750, Method 2026
- Polarity: Cathode Band
- Marking: Cathode Band Only
- Weight: 0.03 grams
- Packing information
T/R
- 2.5K per 7" plastic Reel
.020(0.5) .012(0.3)
Unit : inch (mm)
.063(1.6) .055(1.4)DIA.
.146(3.7) .130(3.3)
.020(0.5) .012(0.3)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS (TJ...
