This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | BAV103 |
|---|---|
| Datasheet | BAV103 BAV101 Datasheet (PDF) |
| File Size | 156.07 KB |
| Manufacturer | PanJit Semiconductor |
| Description | 300mW HIGH VOLTAGE SURFACE MOUNT SWITCHING DIODES |
|
|

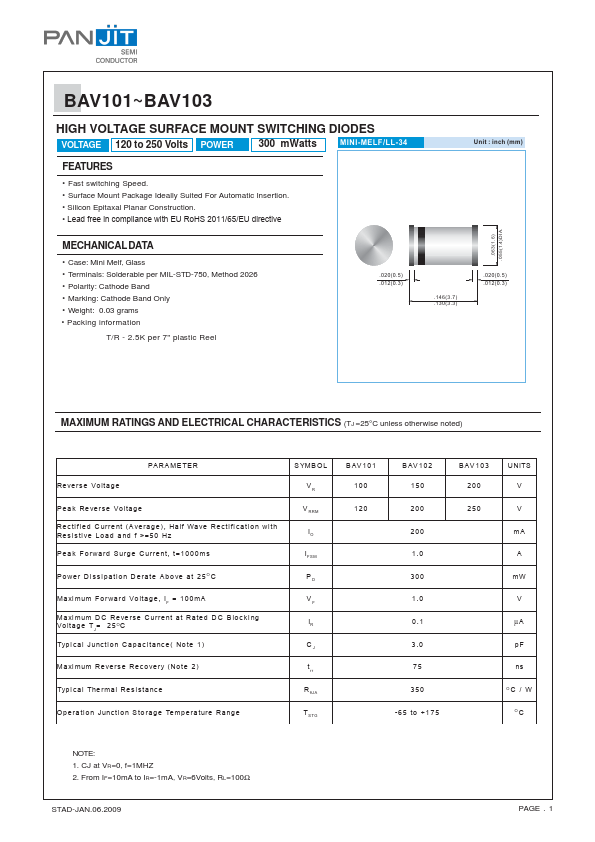

BAV101~BAV103 HIGH VOLTAGE SURFACE MOUNT SWITCHING DIODES VOLTAGE 120 to 250 Volts POWER 300 mWatts MINI-MELF/LL-34.
| Brand Logo | Part Number | Description | Other Manufacturers |
|---|---|---|---|
 |
BAV103 | Small Signal Diodes | Kingtronics |
 |
BAV103 | HIGH SPEED SWITCHING DIODES | EIC |
 |
BAV103 | General purpose diodes | Philips |
 |
BAV103 | SURFACE MOUNT FAST SWITCHING DIODE | Sunmate |
 |
BAV103 | Small Signal Switching Diodes | Vishay |
